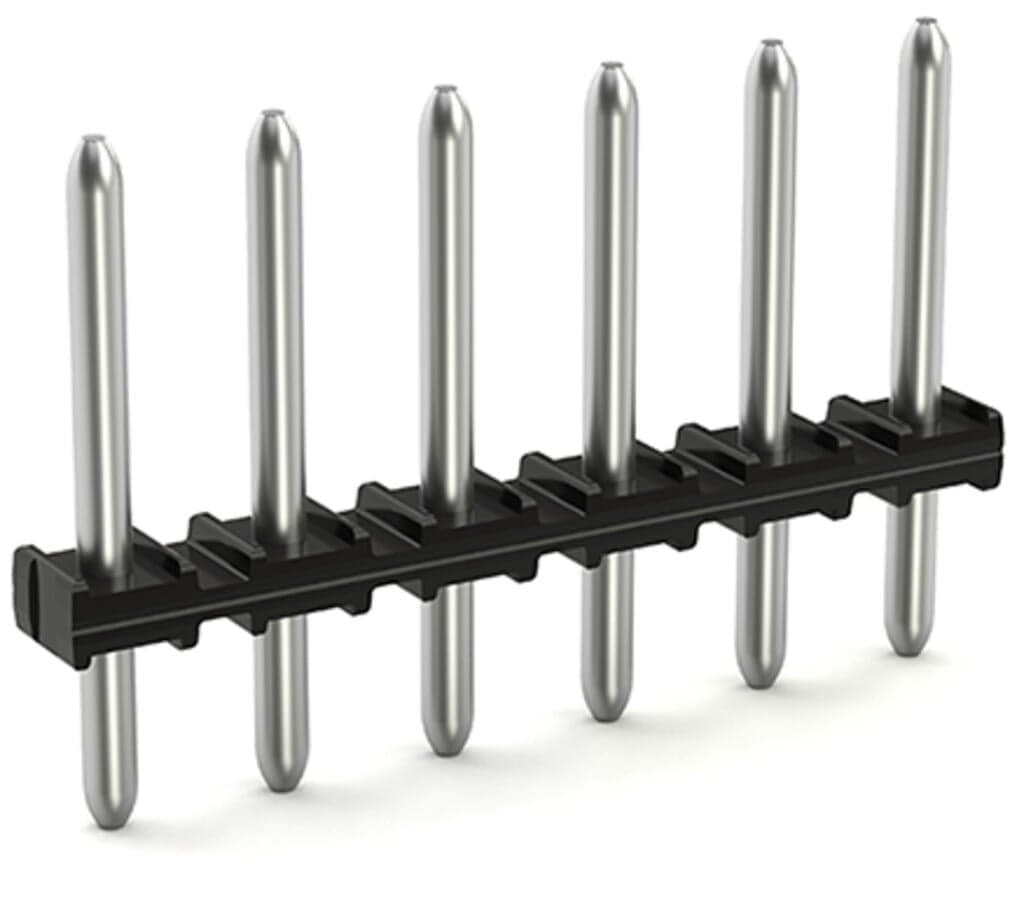

Product Model
2091-1704
Key Features
- 1High-Quality PCB Connector: Designed for reliable connections on printed circuit boards.
- 24-Pole Configuration: Suitable for various applications requiring multiple contact points.
- 31.0 mm Diameter Solder Pins: Ensures secure and efficient soldering.
- 4Black Finish: Aesthetically pleasing and resistant to corrosion.
- 5UL and DEKRA Certified: Meets stringent safety standards for electrical connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Width | 15.5?mm?/ 0.610?inches | Height | 12.9?mm?/ 0.508?inches |
| Height from the surface | 9.3?mm?/ 0.366?inches | Depth | 2.5?mm?/ 0.098?inches |
| Solder pin length | 3.6mm | Solder pin diameter | 1mm |
| Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
| Locking of plug-in connection | none | PCB contact | THT |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Weight | 0.4g |
| Limit temperature range | -60 … +100?°C | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 500?pcs | Packaging type | bag |
| Country of origin | CN | GTIN | 4055143934855 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 4 |
Specifications may be subject to change without notice
