Product Model

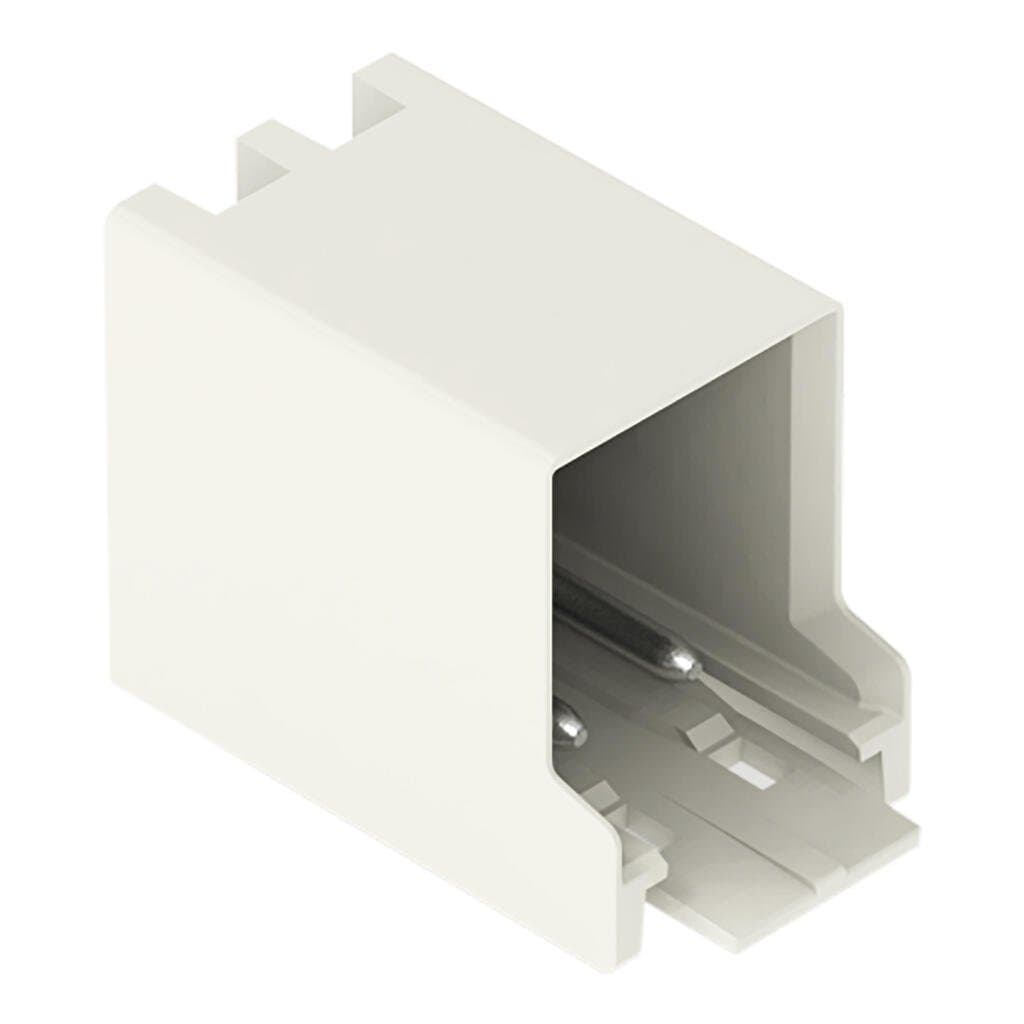

2091-1424/200-604
Key Features
- 1Angled Solder Pins for Easy Installation: The 2091-1424/200-604 features angled solder pins for straightforward and efficient PCB connections.
- 2High Reliability and Vibration Resistance: Fully shrouded by the male header's housing, providing vibration resistance up to 20 g and ensuring reliable connections.
- 34-Pole Configuration for Multiple Functions: Designed to accommodate multiple functions within one header, allowing different functions to be divided efficiently.
- 4Black Color for Enhanced Visibility: Black color ensures clear visibility on PCBs, making it easier to manage and inspect connections.
- 5Compliant with IEC/EN 60664-1 and UL 1059: Meets stringent electrical and safety standards, including IEC/EN 60664-1 and UL 1059, ensuring safe and reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
| Total number of potentials | 4 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 3.5 mm / 0.138 inches |
| Width | 16 mm / 0.63 inches | Height | 14.8 mm / 0.583 inches |
| Height from the surface | 12.4 mm / 0.488 inches | Depth | 17.5 mm / 0.689 inches |
| Solder pin length | 2.4mm | Solder pin diameter | 1mm |
| Plated through-hole diameter (THR) | 1.2(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 0° |
| Locking of plug-in connection | Locking latch | PCB contact | THR |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Weight | 1.6g |
| MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100 °C |
| Processing temperature | -35 … +60 °C | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966439533 |
| Customs tariff number | 85366930000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Number of poles | 4 |
Specifications may be subject to change without notice
