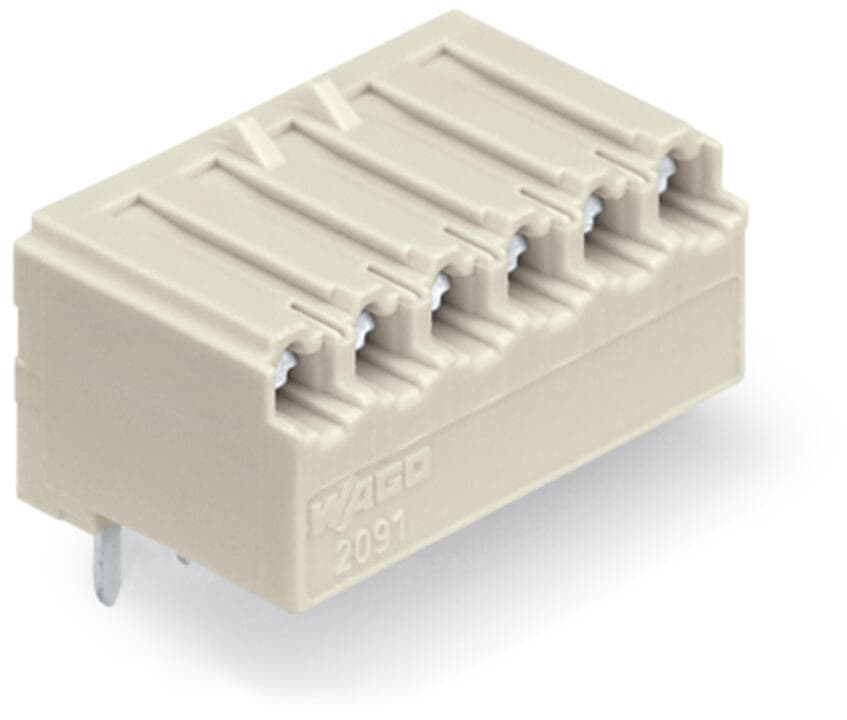

Product Model
2091-1328
Key Features
- 1Touch-proof PCB outputs for enhanced safety and reliability.
- 2Easy-to-identify PCB inputs and outputs simplify installation and maintenance.
- 3Coding option available for customizable connections.
- 4High-rated current of 10A for robust electrical performance.
- 5Compliant with RoHS regulations ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Total number of potentials | 8 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 3.5?mm?/ 0.138?inches | Width | 28?mm?/ 1.102?inches |
| Height | 15.2?mm?/ 0.598?inches | Height from the surface | 11.6?mm?/ 0.457?inches |
| Depth | 13?mm?/ 0.512?inches | Solder pin length | 3.6mm |
| Solder pin dimensions | 0.4 x 0.9?mm | Drilled hole diameter with tolerance | 1.1(+0.1)mm |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female header | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | Yes |
| Mating direction to the PCB | 0° | Locking of plug-in connection | none |
| PCB contact | THT | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Contact material | Copper alloy | Contact plating | Tin |
| Fire load | 0.099MJ | Weight | 4.2g |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| Product Group | 26 (picoMAX Connectors) | eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821160908 |
| Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Number of poles | 8 |
Specifications may be subject to change without notice
