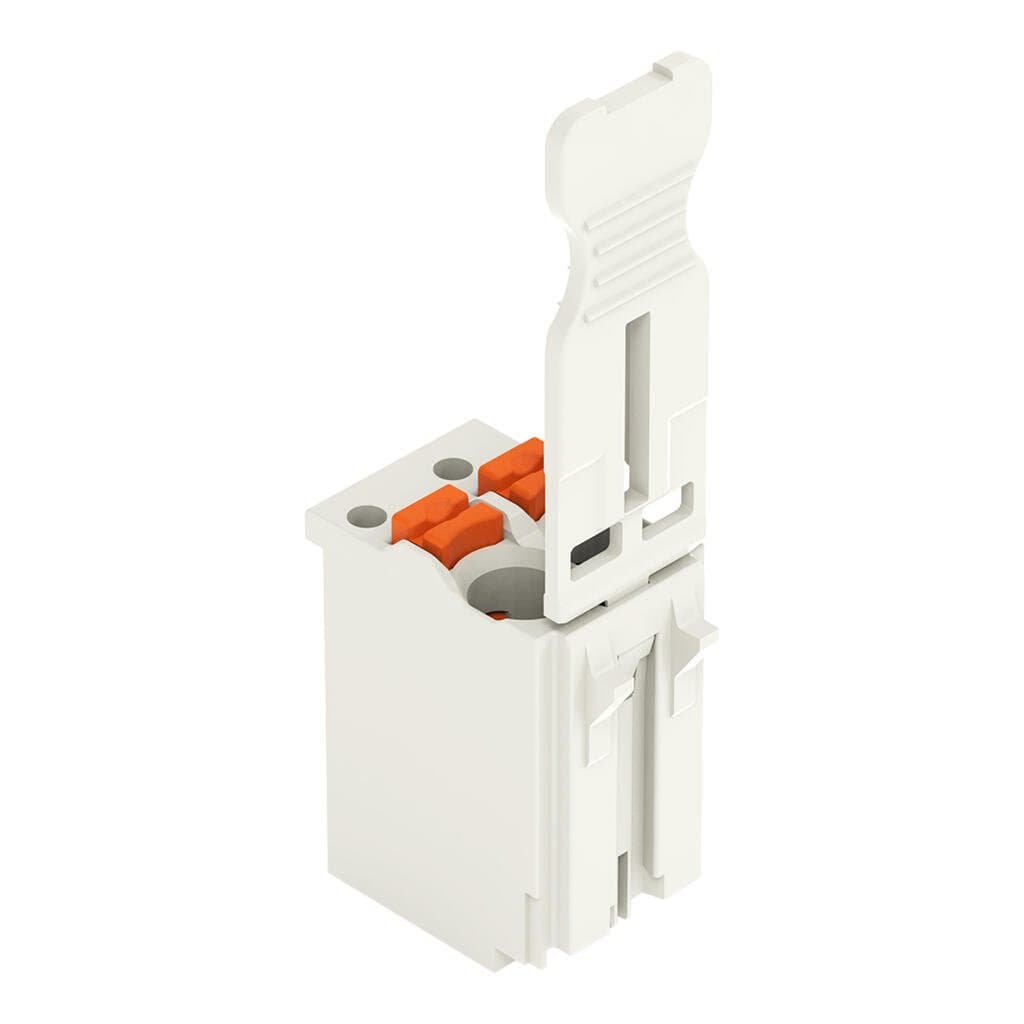

Product Model
2091-1103/000-1000
Key Features
- 1High-quality components ensure long-lasting performance in demanding industrial environments.
- 2Advanced connectivity options simplify integration with various systems and devices.
- 3Compact design minimizes space requirements while maximizing functionality.
- 4Durable construction withstands harsh conditions, including extreme temperatures and vibrations.
- 5Easy-to-use interface reduces setup time and enhances user experience.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | The use of ferrules is recommended for applications with higher requirements.Effective cable securing must be used to prevent undue force on the clamping unit. |
| Variants: | Direct marking | Total number of potentials | 3 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 3.5?mm?/ 0.138?inches | Width | 10.5?mm?/ 0.413?inches |
| Height | 31?mm?/ 1.22?inches | Depth | 11.4?mm?/ 0.449?inches |
| Variable coding | Yes | Design | With gripping plate |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | Yes | Locking of plug-in connection | none |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.007MJ | Weight | 1.5g |
| Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821327592 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
| Solid conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 14?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 3 |
Specifications may be subject to change without notice
