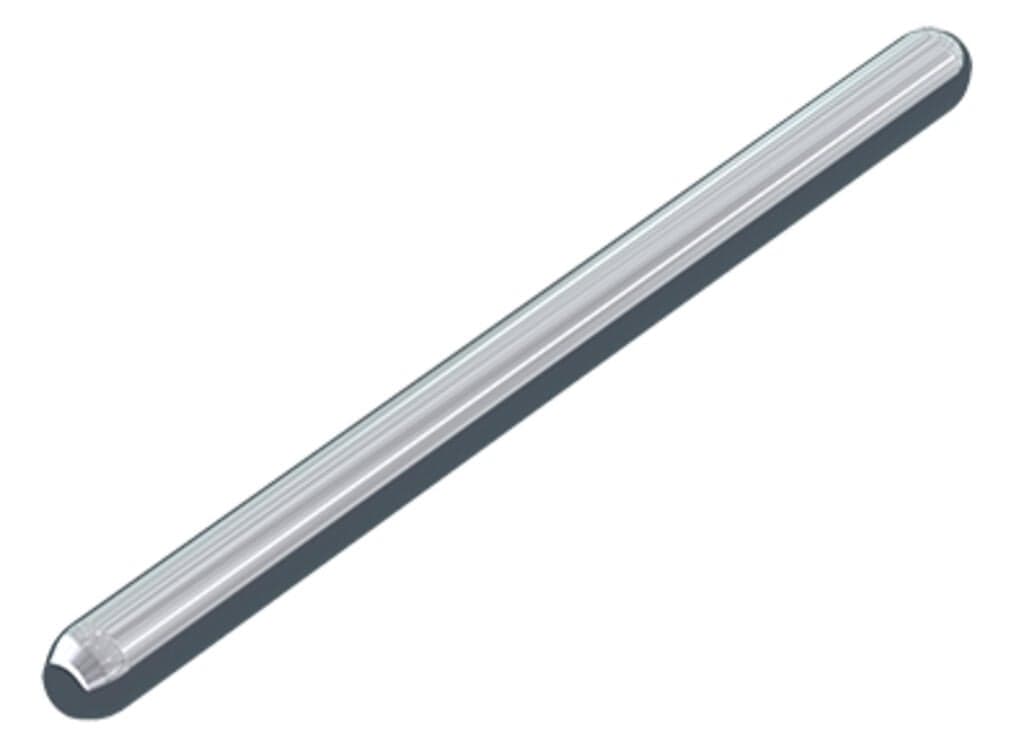

Product Model
2065-131
Key Features
- 1Efficient PCB Connection: Simplify in-line assembly of LED modules with the WAGO 2065-131.
- 2Compact Design: Pin spacing of 6.5mm and length of 15.6mm for space-saving connections.
- 3High Voltage Compatibility: Rated for voltages up to 250V and surge voltages up to 4kV.
- 4Durable Construction: Silver-colored, silver-plated copper alloy contacts for reliable performance.
- 5Multiple Mating Cycles: Supports up to 10 connections/disconnections for added flexibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Notice:Terminal block without insulation housing! Protection against accidental contact must be provided at voltages higher than low voltages (e.g., SELV/PELV) for the relevant application. | Note | The layout must meet the requirements of the insulation coordination standard EN/IEC 60664-1 and applicable end product standards. When using board-to-board links, please note the potentially reduced clearances (e.g., with metal core boards). |
| Depth | 15.6?mm?/ 0.614?inches | Length | 15.6mm |
| Diameter | 1mm | Mating cycles (max.) | 10 |
| Number of mating cycles | 10 connections/disconnections (max.) | Suitable | for SMD PCB terminal blocks; 2065 Series |
| Note (material data) | Information on material specifications can be found here | Color | silver-colored |
| Contact material | Copper alloy | Contact plating | Silver |
| Weight | 0.1g | Limit temperature range | -60 … +120?°C |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1500?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143862721 | Customs tariff number | 8536908585 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 9A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Specifications may be subject to change without notice
