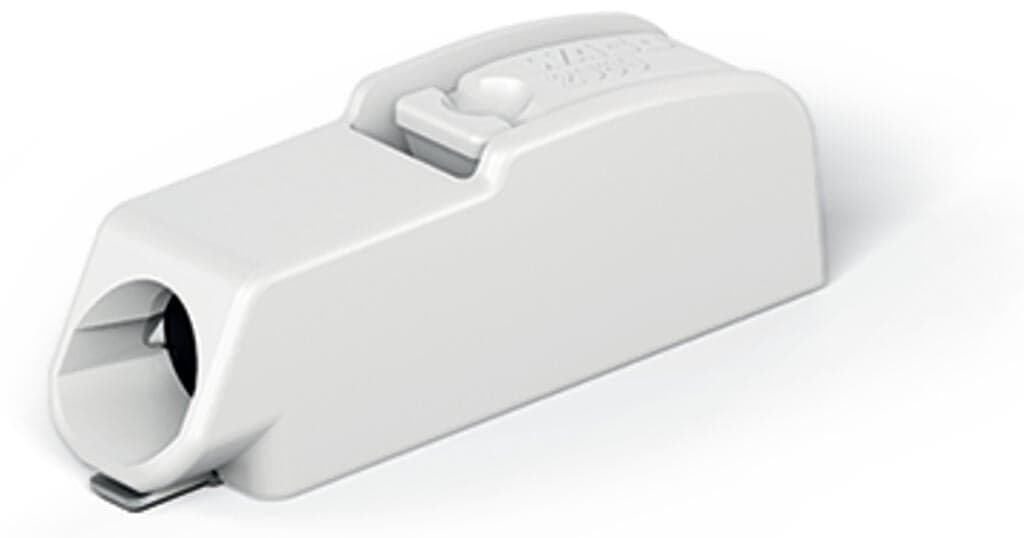

Product Model
2060-451/998-604
Key Features
- 13.9 mm width and 4.5 mm height for minimal space usage.
- 2Supports up to 9A, making it suitable for demanding applications.
- 3Compatible with AWG 24-18 wires and 0.2-0.75 mm² solid-core conductors.
- 4Securely connects single-strand and multi-strand cables with the sprung Cage Clamp mechanism.
- 5Meets safety standards with halogen-free insulation material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thickness; Pattern layout identical to solder pad layout |
| Clamping units | 1 | Total number of potentials | 1 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 4 mm / 0.157 inches | Width | 3.9 mm / 0.154 inches |
| Height | 4.5 mm / 0.177 inches | Depth | 13.1 mm / 0.516 inches |
| Reel diameter of tape-and-reel packaging | 380mm | Tape width | 24mm |
| PCB contact | SMD | Solder pin arrangement | over the entire terminal strip (in-line) |
| Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
| Color | white | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Clamping spring material | Copper alloy | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.009MJ |
| Weight | 0.2g | Limit temperature range | -60 … +105 °C |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 20520 (2280) pcs |
| Packaging type | Box | Country of origin | CH |
| GTIN | 4066966483369 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 63V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 9A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 9A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Solid conductor | 0.2 … 0.75 mm2 / 24 … 18 AWG | Fine-stranded conductor | 0.2 … 0.75 mm2 / 24 … 18 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 0.34 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34 mm2 |
| Strip length | 7 … 9 mm / 0.28 … 0.35 inches | Conductor connection direction to PCB | 0° |
| Number of poles | 1 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
