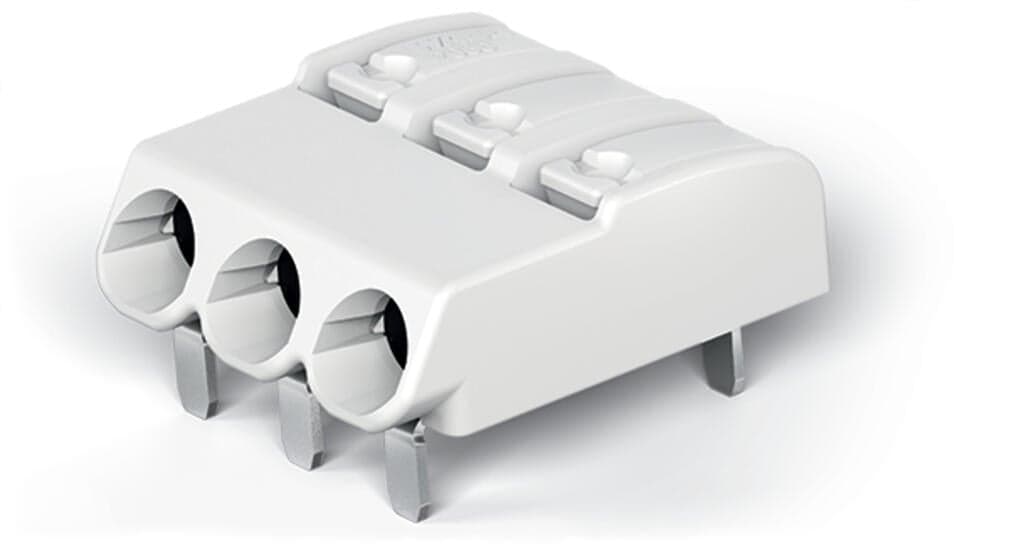

Product Model
2060-1453/998-404
Key Features
- 1Push-button operation for easy conductor termination.
- 24 mm pin spacing for precise electrical connections.
- 33-pole design for versatile application in various industries.
- 4Compatible with tape-and-reel packaging for automated assembly.
- 5Suitable for wave soldering and high-quality electrical interconnection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter |
| Clamping units | 3 | Total number of potentials | 3 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 4?mm?/ 0.157?inches | Width | 11.9?mm?/ 0.467?inches |
| Height | 6.9?mm?/ 0.272?inches | Height from the surface | 4.5?mm?/ 0.177?inches |
| Depth | 12.7?mm?/ 0.5?inches | Solder pin length | 2.4mm |
| Solder pin dimensions | 1.2 x 0.75?mm | Plated through-hole diameter (THR) | 1.5(+0.1)mm |
| Reel diameter of tape-and-reel packaging | 330mm | Tape width | 24mm |
| PCB contact | THR | Solder pin arrangement | over the entire terminal strip (in-line) |
| Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
| Color | white | Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
| Clamping spring material | Copper alloy | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.02MJ |
| Weight | 0.8g | MSL per J-STD 020D | 1 |
| Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 4950?(550)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4055143889056 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 63V |
| Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
| Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
| Rated surge voltage (II/2) | 2.5kV | Rated current | 9A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Rated voltage (UL 1977) | 320V |
| Rated current UL 1977 | 9A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Solid conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG |
| Fine-stranded conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.34?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34?mm2 | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Conductor connection direction to PCB | 0° | Number of poles | 3 |
Specifications may be subject to change without notice
