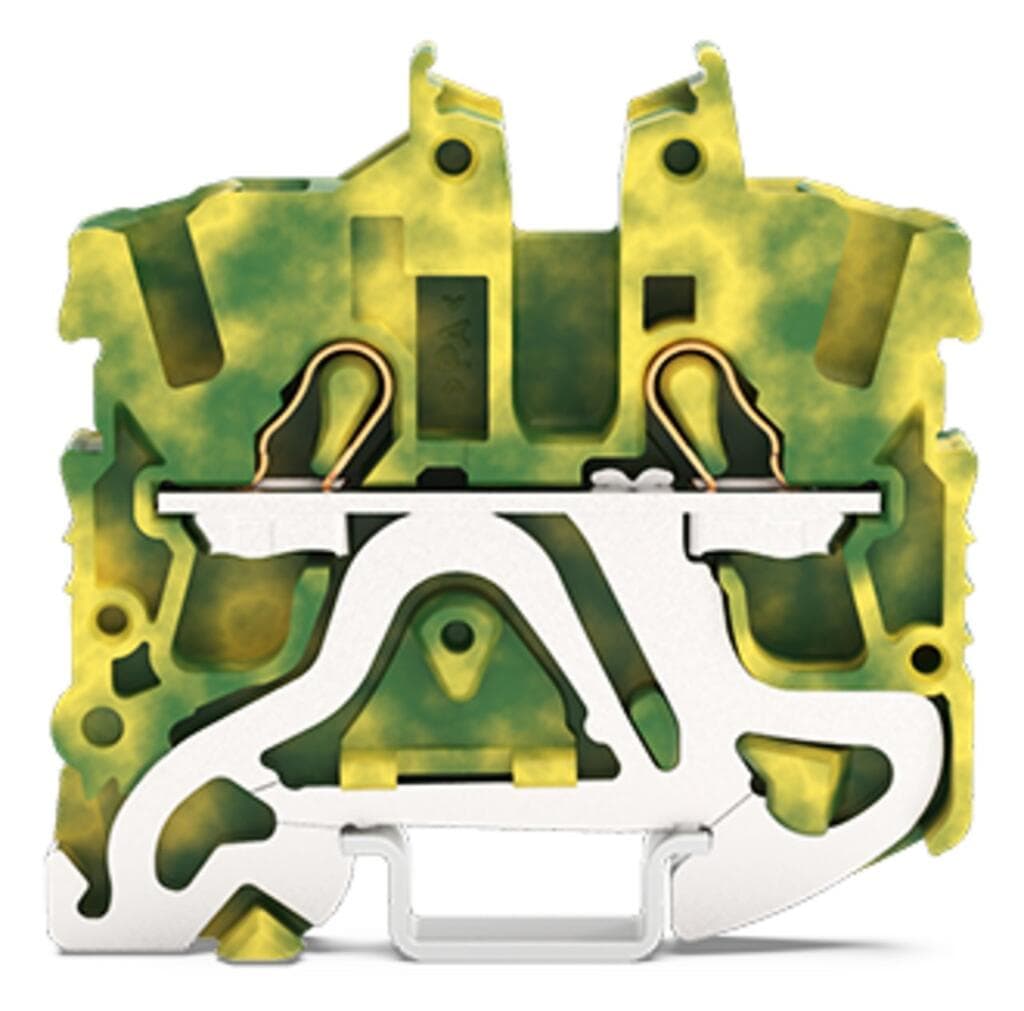

Product Model
2052-1207
Key Features
- 1Compact Design: Fits DIN-15 rail with a width of 5.2mm.
- 2High-Temperature Operation: Operates up to 105 degrees Celsius.
- 3Versatile Connectivity: Accommodates wire sizes from 22 AWG to 12 AWG.
- 4Easy Installation: Uses push-in CAGE CLAMP spring connections.
- 5Durable Material: Made from polyamide (PA66) with a V0 flammability class.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 1 |
| Width | 5.2?mm?/ 0.205?inches | Height | 36.5?mm?/ 1.437?inches |
| Depth from upper-edge of DIN-rail | 30.8?mm?/ 1.213?inches | Mounting type | DIN-15 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Weight | 7.1g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | Box |
| Country of origin | IN | GTIN | 4066966180961 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Solid conductor; push-in termination | 1 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
