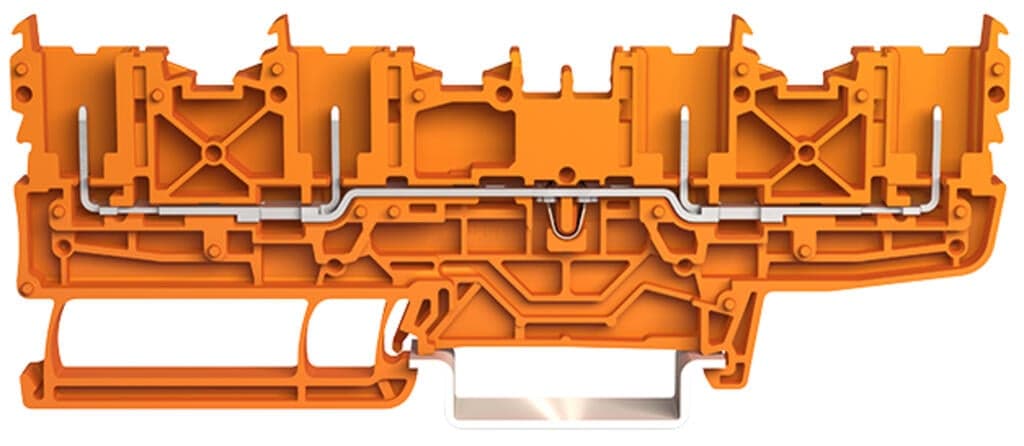

Product Model
2022-1802
Key Features
- 1DIN-Rail Mounting Compatibility: Designed for DIN-rail 35 x 15 and 35 x 7.5.
- 2Polyamide Insulation: Orange housing made of polyamide (PA66) for excellent insulation.
- 3High Current Rating: Supports a rated current of 24A.
- 4Side and Center Marking Slots: Easy identification with side and center marking slots.
- 5Compact Design: 1-deck/level component with a width of 5.2mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Female plug slots | 4 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5.2?mm?/ 0.205?inches | Height | 106?mm?/ 4.173?inches |
| Depth from upper-edge of DIN-rail | 32.5?mm?/ 1.28?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 11.8g |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
| ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | Box |
| Country of origin | CN | GTIN | 4055143927116 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 690V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
| Power loss, per pole (potential) | 0.766W | Rated current I<sub>N</sub> for specified power loss | 24A |
| Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
| Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
| Test duration per axis | 5 h | Test directions | X, Y and Z axes |
| Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
| Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
| Shock form | Half sine | Shock duration | 30 ms |
| Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
