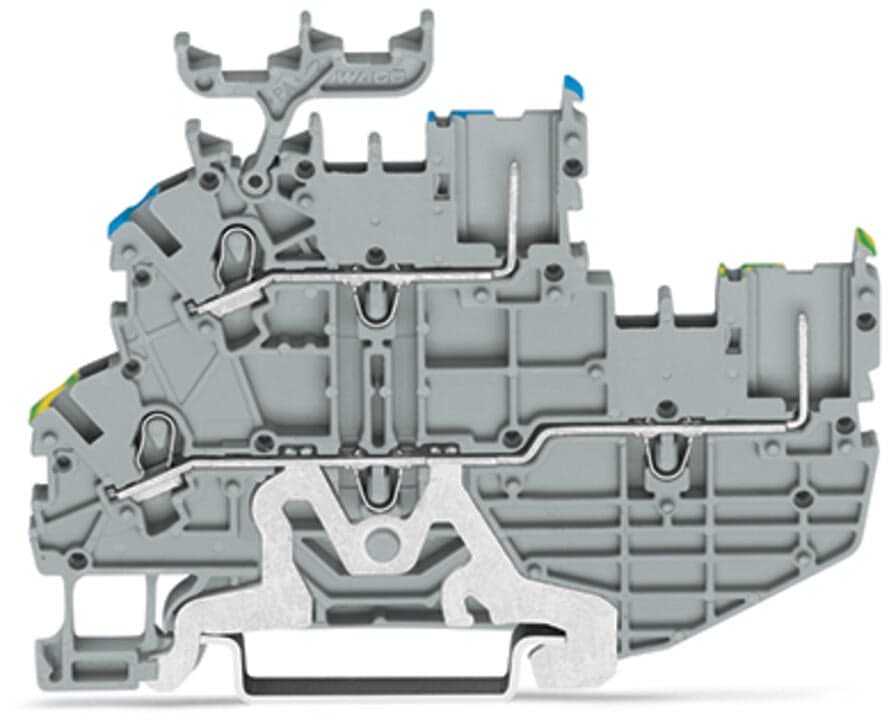

Product Model
2020-2217
Key Features
- 1Designed for DIN-rail mounting, the WAGO 2020-2217 terminal block simplifies electrical connections.
- 2Easy and secure connection method with no need for tools.
- 3Meets stringent safety standards for hazardous environments.
- 4Provides ample space for multiple conductors, enhancing wiring flexibility.
- 5Durable gray finish ensures clear visibility in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Clamping units | 2 |
| Female plug slots | 2 | Total number of potentials | 2 |
| Number of levels | 2 | Number of jumper slots | 4 |
| Width | 3.5?mm?/ 0.138?inches | Height | 80.1?mm?/ 3.154?inches |
| Depth from upper-edge of DIN-rail | 51.3?mm?/ 2.02?inches | Potential Marking | PE/N |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.177MJ | Weight | 12.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4050821049555 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 15A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 15A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
| Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
| Resistance value for specified, current-dependent power loss | 0.002Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
