Product Model

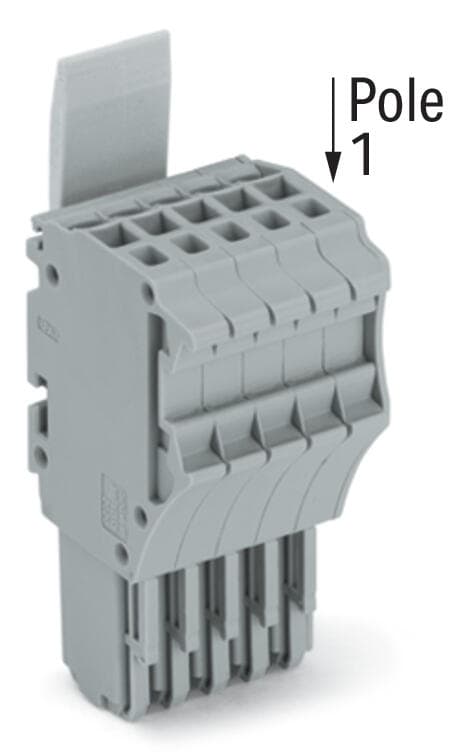

2020-105/124-000
Key Features
- 1Lateral Locking Lever: Securely locks the plug in place for reliable connections.
- 23.5mm Pin Spacing: Ensures precise alignment and easy insertion into terminal blocks.
- 35-Pole Design: Supports multiple conductors, enhancing connectivity options.
- 4Wire Size Compatibility: Suitable for wire sizes #24AWG to #16AWG, offering versatility in applications.
- 5Push-in CAGE CLAMP: Easy-to-use spring connections simplify installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Safety information 2 | Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug. |
| Clamping units | 5 | Total number of potentials | 5 |
| Width | 18.2?mm?/ 0.717?inches | Height | 48.9?mm?/ 1.925?inches |
| Depth | 27.2?mm?/ 1.071?inches | Module width | 3.5?mm?/ 0.138?inches |
| Variable coding | Yes | Marking level | Side marking |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | No |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | Locking lever |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.244MJ |
| Weight | 12.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4050821092421 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 13.5A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
| Number of poles | 5 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
