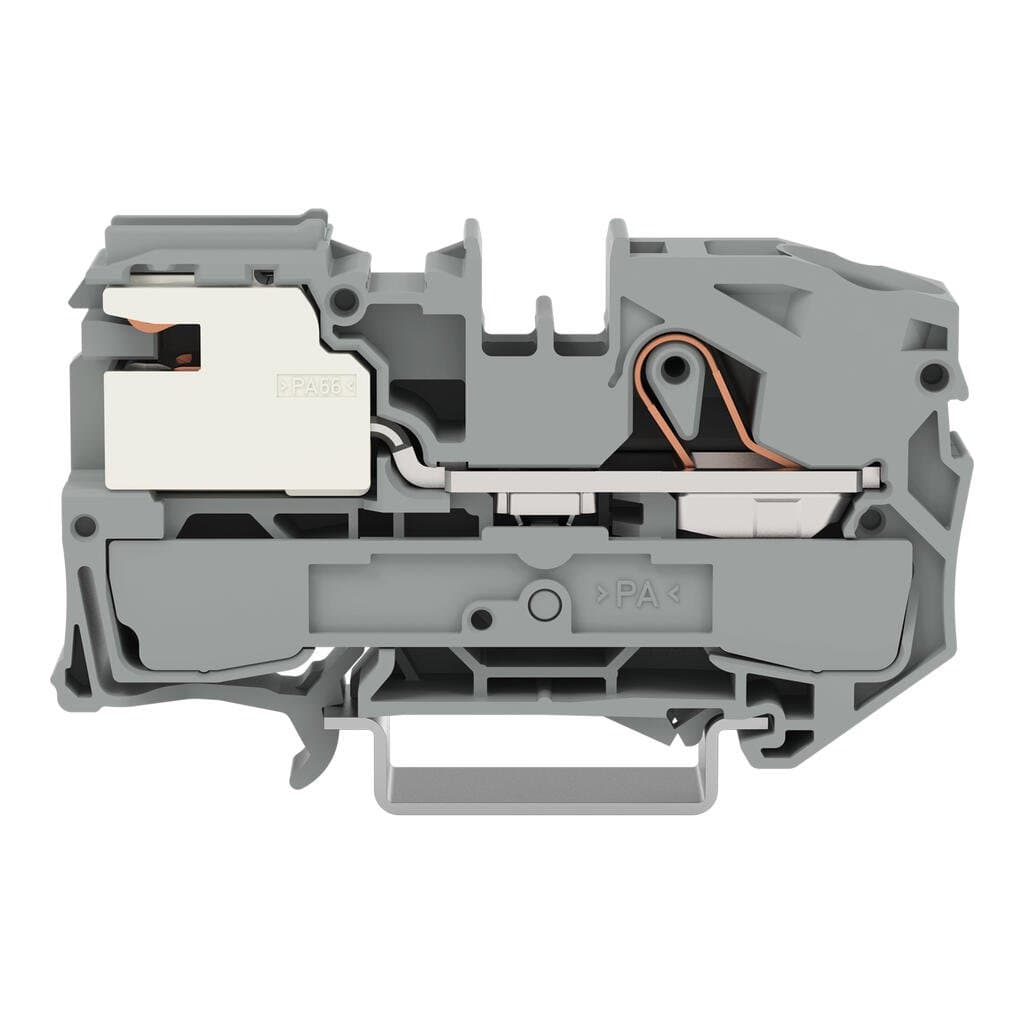

Product Model
2016-7111
Key Features
- 1Securely manage power with the WAGO 2016-7111's Push-in CAGE CLAMP technology.
- 2Easily integrate into your system with its DIN rail mounting design.
- 3Handle up to 65A of current, making it suitable for demanding applications.
- 4Accommodates wire sizes from AWG 20 to 4, ensuring flexibility in your setup.
- 5Meets ABS, DEKRA, and DNV GL certification standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 12?mm?/ 0.472?inches | Height | 69.4?mm?/ 2.732?inches |
| Depth from upper-edge of DIN-rail | 38.1?mm?/ 1.5?inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.413MJ | Weight | 24.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-38 |
| eCl@ss 9.0 | 27-14-11-38 | ETIM 9.0 | EC001257 |
| ETIM 8.0 | EC001257 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | PL | GTIN | 4044918964562 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated current | 72A |
| Current at conductor cross-section (max.) mm2 | 80A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 2.177W | Rated current I<sub>N</sub> for specified power loss | 72A |
| Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 16 mm2 | Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
| Solid conductor; push-in termination | 6 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 0.5 … 25?mm2?/ 20 … 4?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 16?mm2?/ 20 … 6?AWG | Fine-stranded conductor; with ferrule; push-in termination | 6 … 16?mm2?/ 10 … 6?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
