Product Model

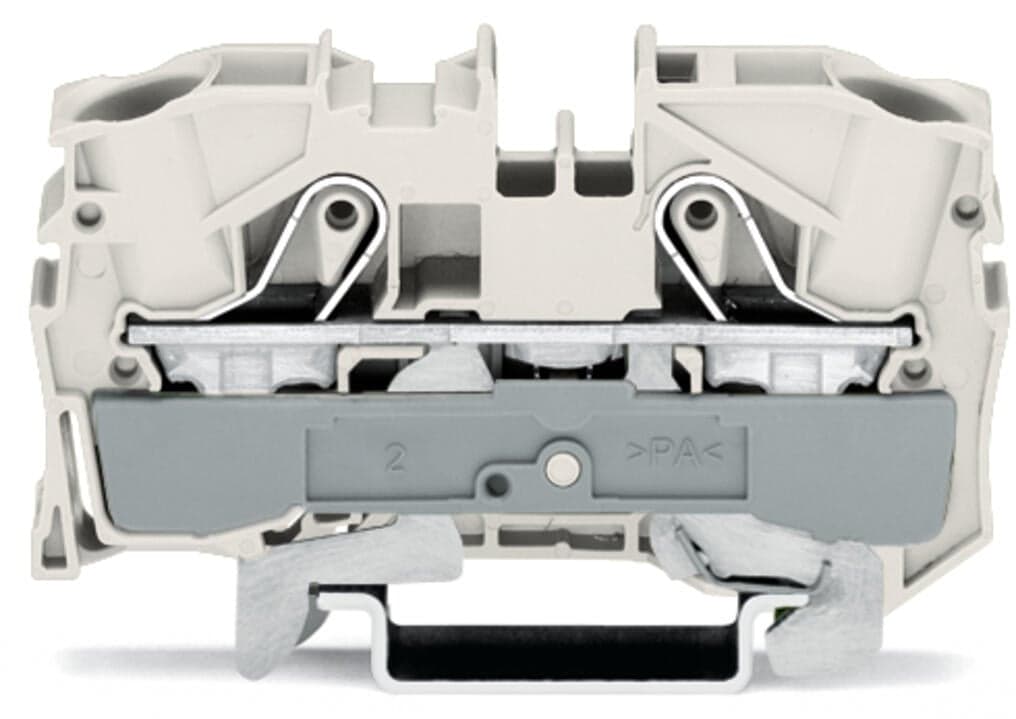

2010-1208
Key Features
- 1Suitable for Ex e II Applications: Designed for hazardous environments, ensuring safety and reliability.
- 2DIN-Rail Mounting: Easy installation on 35 x 15 and 35 x 7.5 DIN rails.
- 3Push-in CAGE CLAMP Technology: Secure and efficient conductor connection.
- 4Side and Center Marking: Enhanced visibility for easy identification and wiring.
- 510 mm² Conductor Capacity: Handles conductors up to 10 mm² for robust connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 10?mm?/ 0.394?inches | Height | 67.8?mm?/ 2.669?inches |
| Depth from upper-edge of DIN-rail | 36.9?mm?/ 1.453?inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | white | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.256MJ | Weight | 28.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821189138 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-2 | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 10 mm2 | Solid conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
| Solid conductor; push-in termination | 4 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 0.5 … 16?mm2?/ 20 … 6?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with ferrule; push-in termination | 4 … 10?mm2?/ 12 … 8?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.AWG specifications were converted according to IEC. | Strip length | 17 … 19?mm?/ 0.67 … 0.75?inches |
| Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
