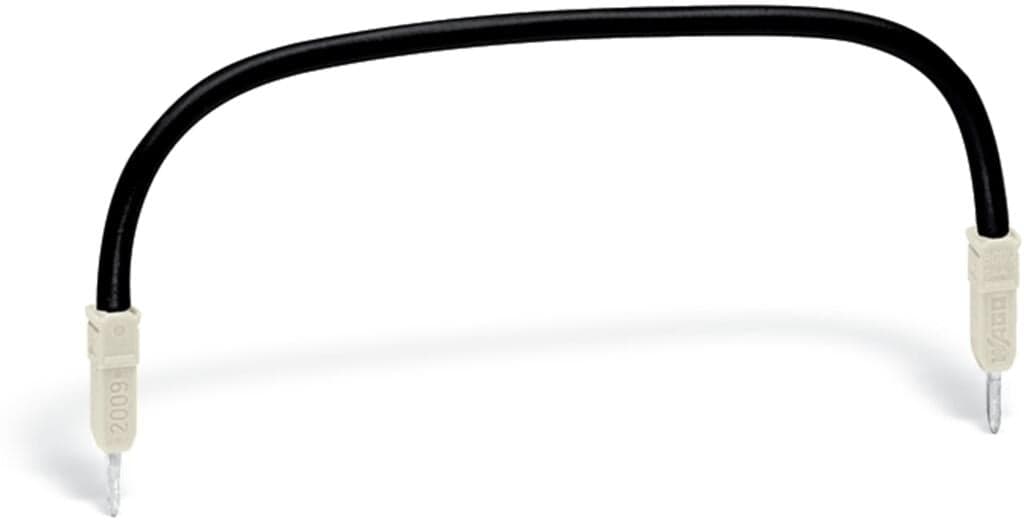

Product Model
2009-412
Key Features
- 1Insulated Design: Ensures safe and reliable electrical connections.
- 2High Current Rating: Supports up to 18A, making it suitable for demanding applications.
- 3Versatile Compatibility: Compatible with 2001, 2002, 2003, and 2022 series rail-mounted terminal blocks.
- 4Durable Construction: Built with high-quality materials for long-lasting performance.
- 5Easy Installation: Simple push-in type connection makes installation quick and efficient.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Push down the wire jumper until fully inserted! | Wire length of wire jumpers | 60mm |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Weight | 2g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(10)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454302238 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated current | 18A |
| Solid conductor | 1.5?mm2 |
Specifications may be subject to change without notice
