Product Model
2009-192
Key Features

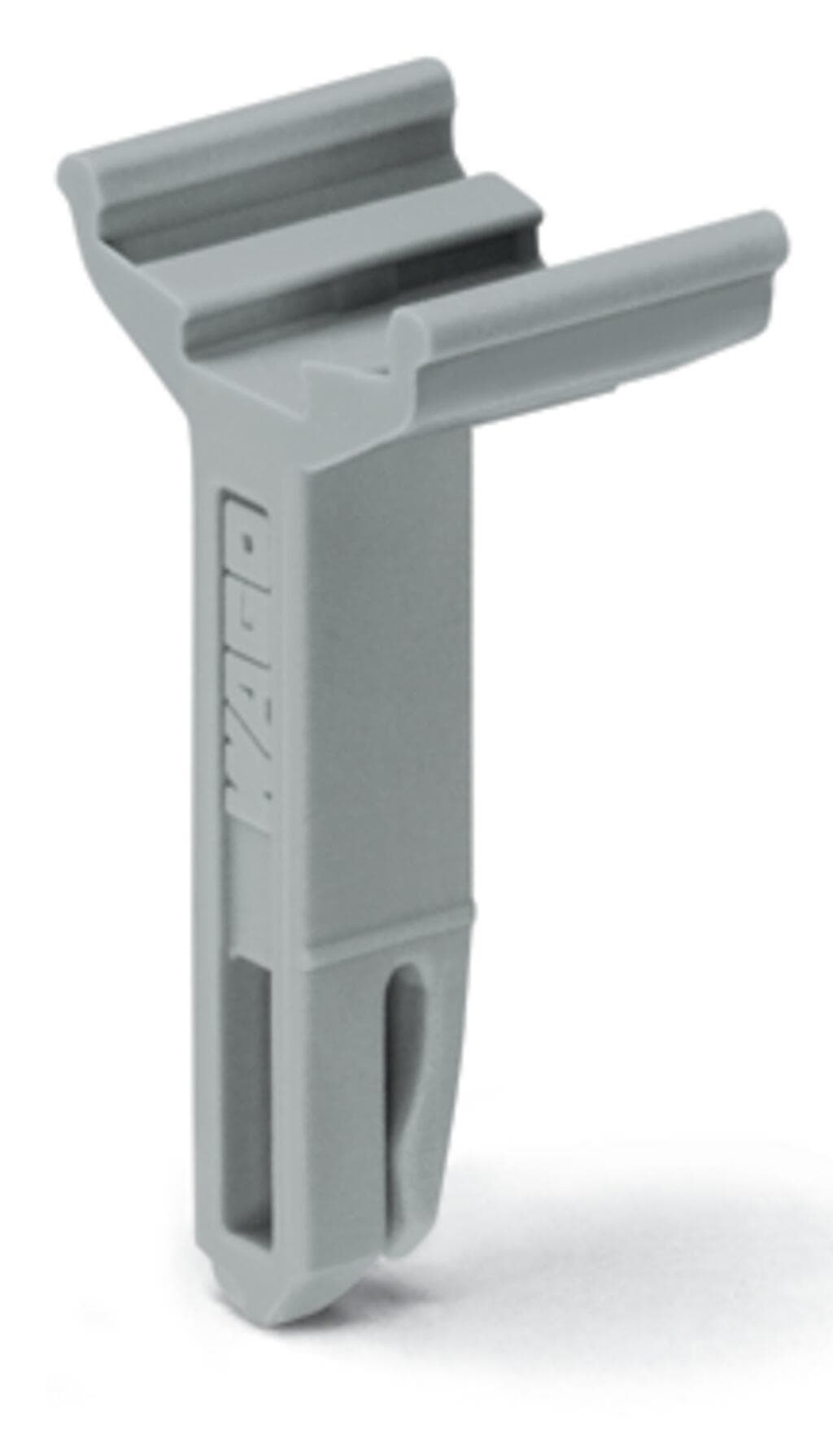

- 1Gray Group Marker Carrier: Designed to mark jumper slots, ensuring clear identification in complex electrical systems.
- 2Rail/Chassis Mount: Easy installation on rails or chassis, providing a secure and organized electrical setup.
- 3Durable Construction: Built to withstand industrial conditions, ensuring long-lasting performance.
- 4Snap-On Type: Convenient snap-on design for quick and easy installation.
- 5Compliant with Industrial Standards: Meets or exceeds industry standards for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | snaps into jumper slot; for WMB markers or marking strips | Width | 10?mm?/ 0.394?inches |
| Color | gray | Weight | 1.2g |
| Fire load | 0.016MJ | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-40-75 | eCl@ss 9.0 | 27-14-40-75 |
| ETIM 9.0 | EC002248 | ETIM 8.0 | EC002248 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918935975 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
