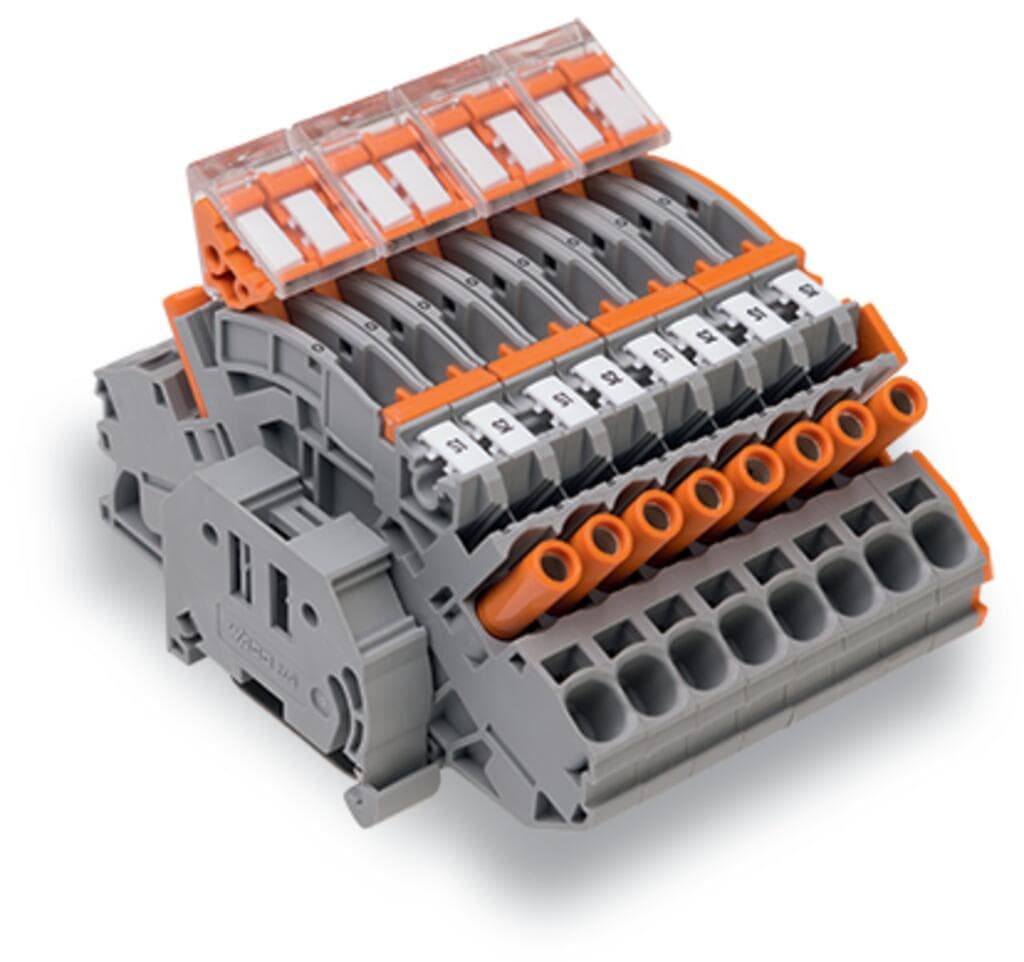

Product Model
2007-8877
Key Features
- 1Push-in CAGE CLAMP connections for easy and secure wiring.
- 2Nominal cross-section of 6mm², accommodating wire sizes from 0.5mm² to 10mm² or #20AWG to #8AWG.
- 3Multicoloured design for clear identification in complex circuits.
- 4DIN-35 rail mounting for versatile installation options.
- 5Rated voltage of 500V and impulse voltage of 6kV for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of levels | 1 | Width | 85.5?mm?/ 3.366?inches |
| Height | 99.6?mm?/ 3.921?inches | Depth from upper-edge of DIN-rail | 65.3?mm?/ 2.571?inches |
| Module width | 8?mm?/ 0.315?inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | multi-colored | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 4.124MJ | Weight | 248.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-47 | eCl@ss 9.0 | 27-14-11-47 |
| ETIM 9.0 | EC000276 | ETIM 8.0 | EC000276 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143240673 | Customs tariff number | 8536904000 |
| CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 99de7278-19dc-4ed9-a698-f110ec8232e4 | SCIP notification number (Belgium) | fd633b4b-67a5-4775-b71b-acf940f0d948 |
| SCIP notification number (Bulgaria) | 7c216727-d1d4-4645-9815-24fb4147d9cc | SCIP notification number (Czech Republic) | b07a6628-9357-4d52-b4ce-56af8cc35208 |
| SCIP notification number (Denmark) | eae2ad3e-d989-4fdd-b847-71f9d79261a1 | SCIP notification number (Finland) | 6fa044d4-f699-4d5d-a982-88fa55734835 |
| SCIP notification number (France) | 7f687f6f-4ff2-4b6c-8634-a755838686e8 | SCIP notification number (Germany) | c4756e0b-1539-4c7c-a551-db2f93a39f44 |
| SCIP notification number (Hungary) | 45fde486-5020-435b-8cab-0c0daffc45e1 | SCIP notification number (Italy) | 27d0abfc-da60-466c-8d3e-bc3b08f266f9 |
| SCIP notification number (Netherlands) | 705851ff-e5cd-4b67-8dfa-fb2e1b4d97fb | SCIP notification number (Poland) | 75c10da8-2db0-479d-ac47-d45422a58aa5 |
| SCIP notification number (Romania) | 47726db3-134c-48c2-9103-62167e5cf996 | SCIP notification number (Sweden) | fe3e7e14-5def-45d0-aee8-86ef3a15be18 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 6 mm2 / 10 AWG | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with uninsulated ferrule | 1.5 … 6?mm2?/ 16 … 10?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
| Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
