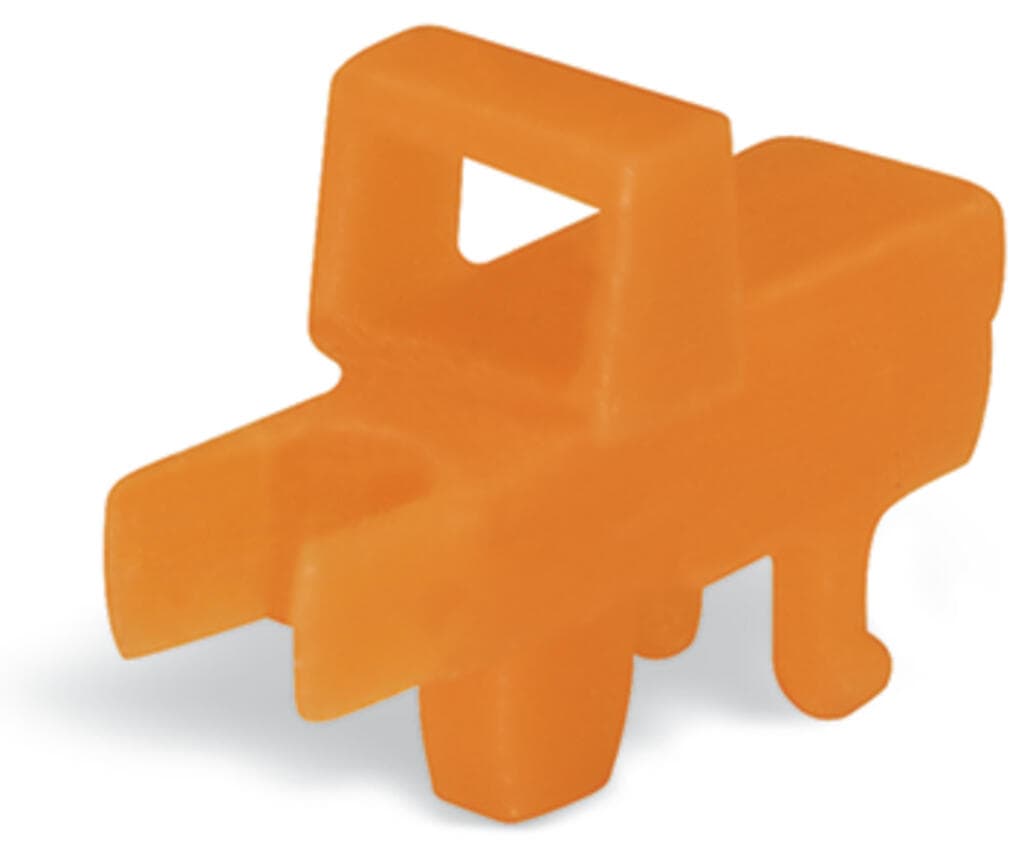

Product Model
2005-7300
Key Features
- 1Prevents reclosing of slide link.
- 2Snap-in type for easy installation.
- 3Compatible with 2002 and 2005 Series.
- 4Orange color for visibility.
- 5Fire load: 0.004 MJ, weight: 0.47 g.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.004MJ |
| Weight | 0.1g | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454708498 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
