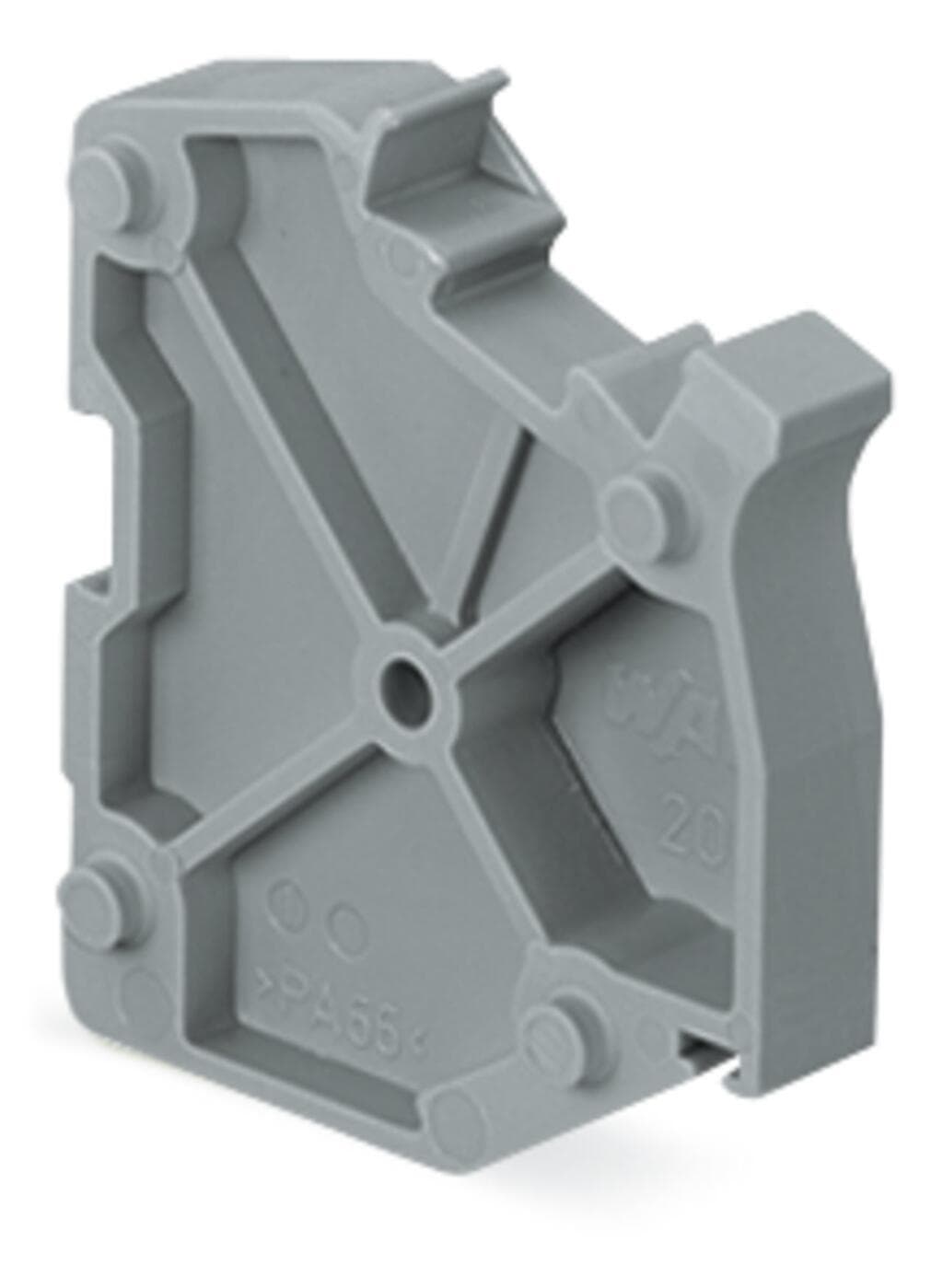

Product Model
2004-549
Key Features
- 1Modular Design: Ideal for bridging commoned terminal blocks.
- 2Compact Size: 6.2 mm width for efficient use in rail-mounted systems.
- 3Gray Color: Durable and easy to integrate into various electrical setups.
- 4Lightweight: Weighs only 1.640 g for easy handling and installation.
- 5Industry-Approved: Meets standards from ABS, DEKRA, and Bureau Veritas for reliability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 6.2?mm?/ 0.244?inches | Module width | 6.2?mm?/ 0.244?inches |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Flammability class per UL94 | V0 |
| Fire load | 0.049MJ | Weight | 1.6g |
| Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918614061 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 1 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
