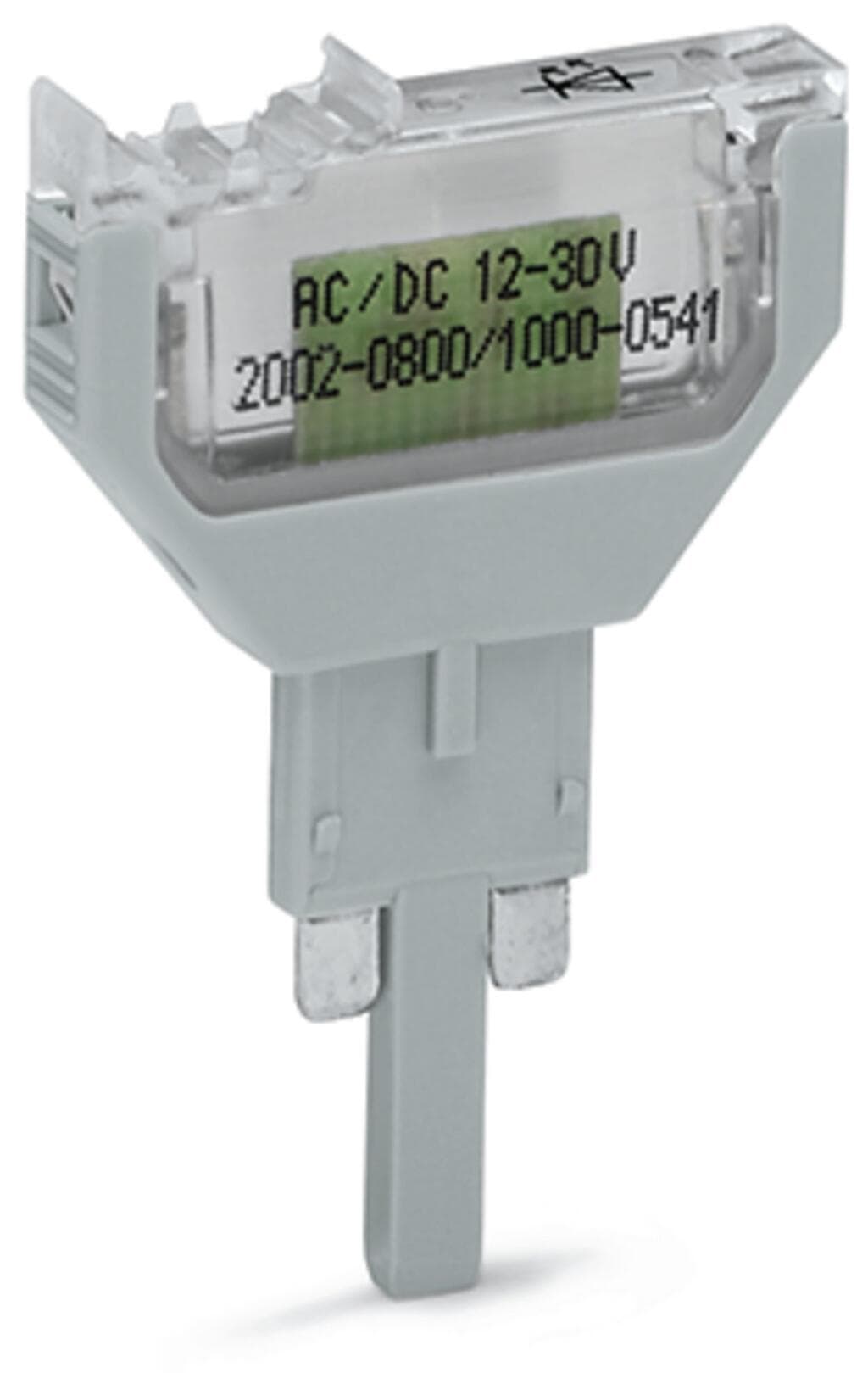

Product Model
2002-800/1000-541
Key Features
- 1Compact Design: 5.2mm wide, perfect for space-constrained applications.
- 2Reliable Indication: Red LED indicator for easy blown fuse detection.
- 3Versatile Voltage Range: Compatible with 12-30V, suitable for various electrical systems.
- 4Durable Construction: Made of high-quality materials for long-lasting performance.
- 5Easy Installation: Simple push-in connection for quick and secure mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 5.2?mm?/ 0.205?inches | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.096MJ |
| Weight | 3.2g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
| ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454913908 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 0.003A |
| Operation status indicator | 12 … 30?V |
Specifications may be subject to change without notice
