Product Model

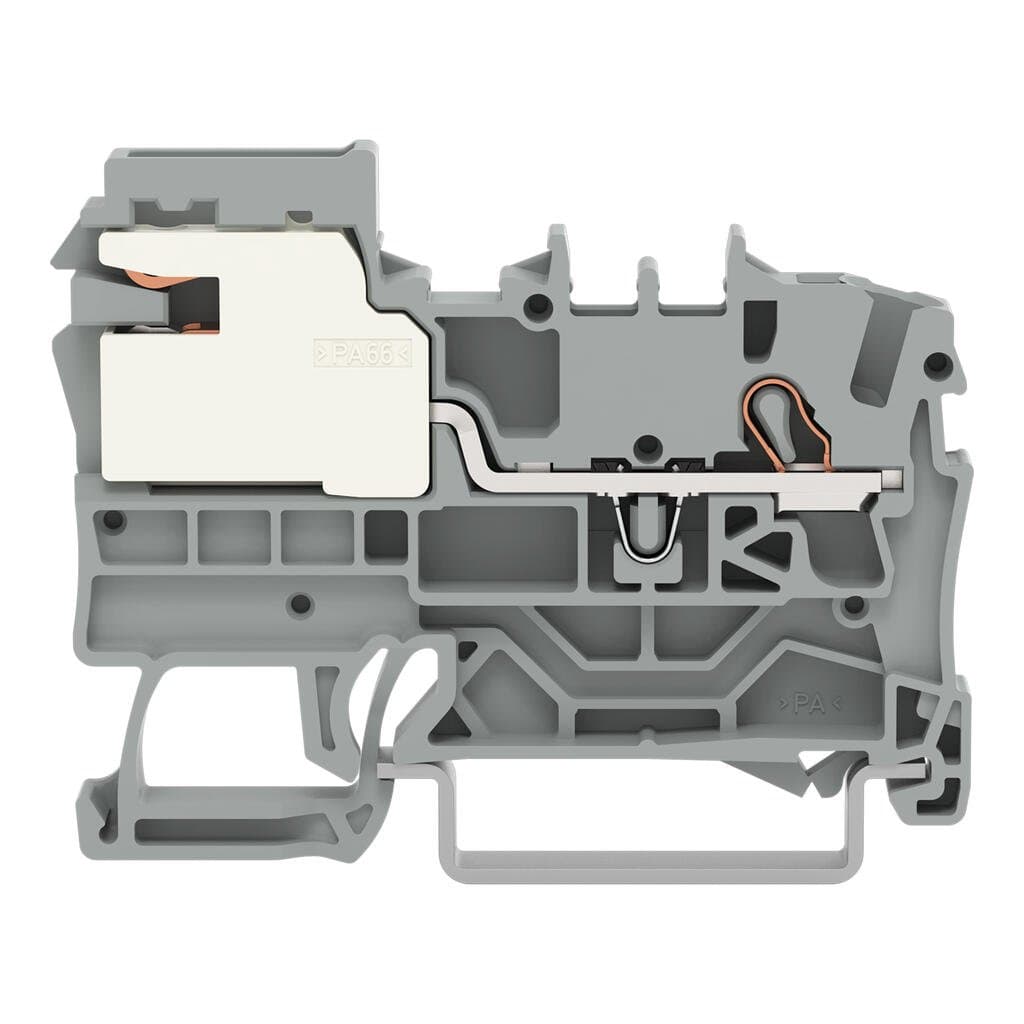

2002-7111
Key Features
- 1Easy and secure wiring with push-in technology.
- 2Rated for 32 A, suitable for demanding power distribution needs.
- 3Constructed with polyamide (PA66) insulation and a robust mechanical design.
- 4Accommodates solid and stranded conductors, including fine-stranded conductors with ferrules.
- 5Convenient mounting option for efficient installation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 5.2 mm / 0.205 inches | Height | 56.6 mm / 2.228 inches |
| Depth from upper-edge of DIN-rail | 38.1 mm / 1.5 inches | Mounting type | DIN-35 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.145MJ | Weight | 8g |
| Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
| Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-38 |
| eCl@ss 9.0 | 27-14-11-38 | ETIM 9.0 | EC001257 |
| ETIM 8.0 | EC001257 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50 pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4044918964555 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60947-7-1 | Rated voltage (III / 3) | 250V |
| Rated impulse voltage (III / 3) | 4kV | Rated current | 24A |
| Current at conductor cross-section (max.) mm2 | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 1.362W | Rated current I<sub>N</sub> for specified power loss | 32A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
| Solid conductor; push-in termination | 1 … 4 mm2 / 17 … 12 AWG | Fine-stranded conductor | 0.25 … 4 mm2 / 22 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5 mm2 / 22 … 14 AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5 mm2 / 18 … 14 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12 mm / 0.39 … 0.47 inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
