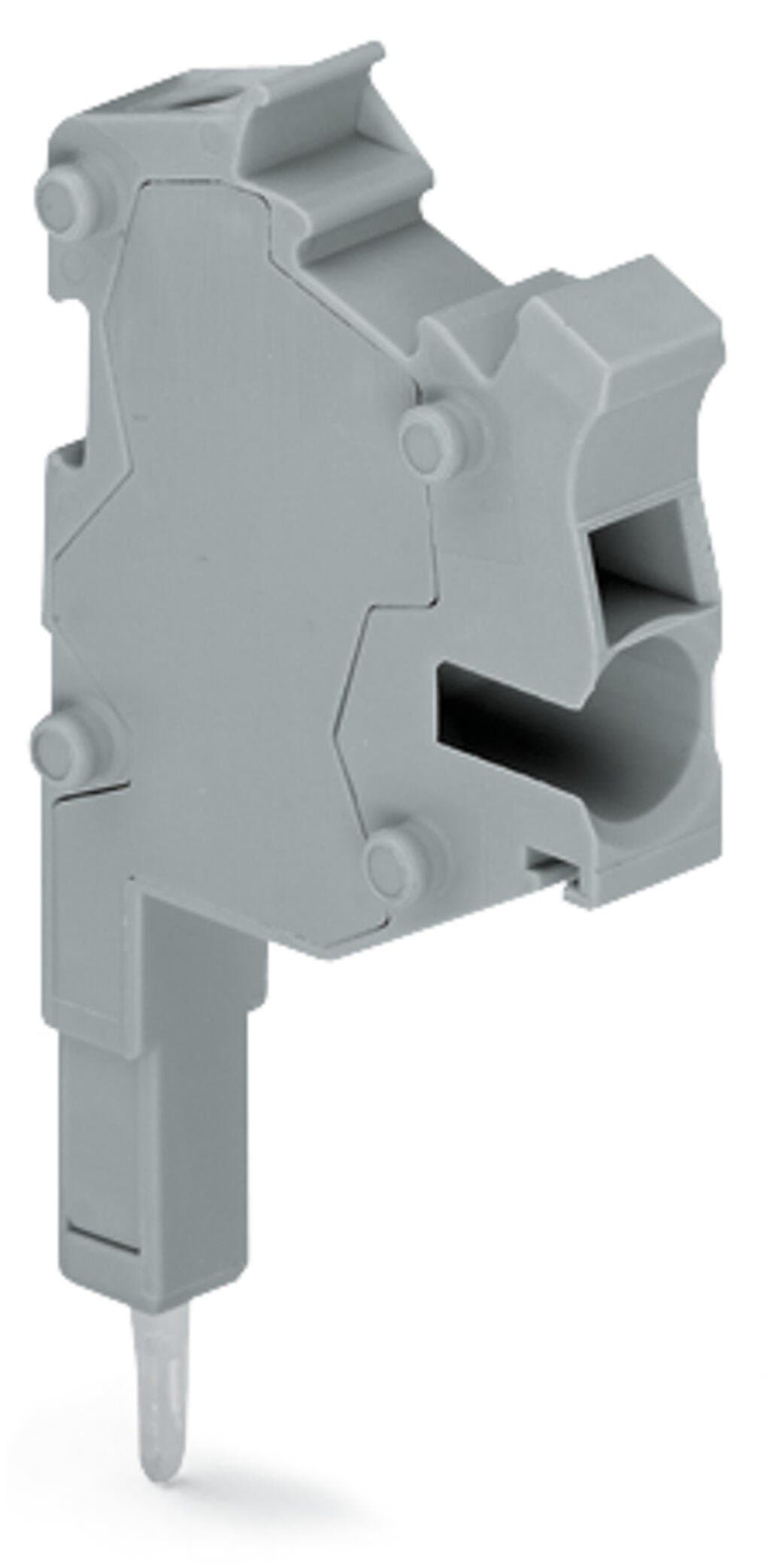

Product Model
2002-511
Key Features
- 1High-Quality Electrical Connection: The WAGO 2002-511 TOPJOB S modular connector ensures reliable and efficient electrical connections.
- 2Push-in CAGE CLAMP Technology: Easy-to-use push-in connections simplify installation and reduce errors.
- 3Rated for 24A: Supports high current applications with a rated current of 24A.
- 4UL 1059 Approval: Meets stringent safety standards for electrical connectors.
- 5Gray Color and Side-Entry Wiring: Durable gray color and side-entry wiring design for easy access and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 5.2?mm?/ 0.205?inches |
| Module width | 5.2?mm?/ 0.205?inches | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.071MJ | Weight | 2.7g |
| Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-51 |
| eCl@ss 9.0 | 27-14-11-51 | ETIM 9.0 | EC002021 |
| ETIM 8.0 | EC002021 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918924849 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 20A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 20A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
| Number of poles | 1 | Wiring direction | Side-entry wiring |
| Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
| Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
| Test duration per axis | 5 h | Test directions | X, Y and Z axes |
| Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
| Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
| Shock form | Half sine | Shock duration | 30 ms |
| Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
