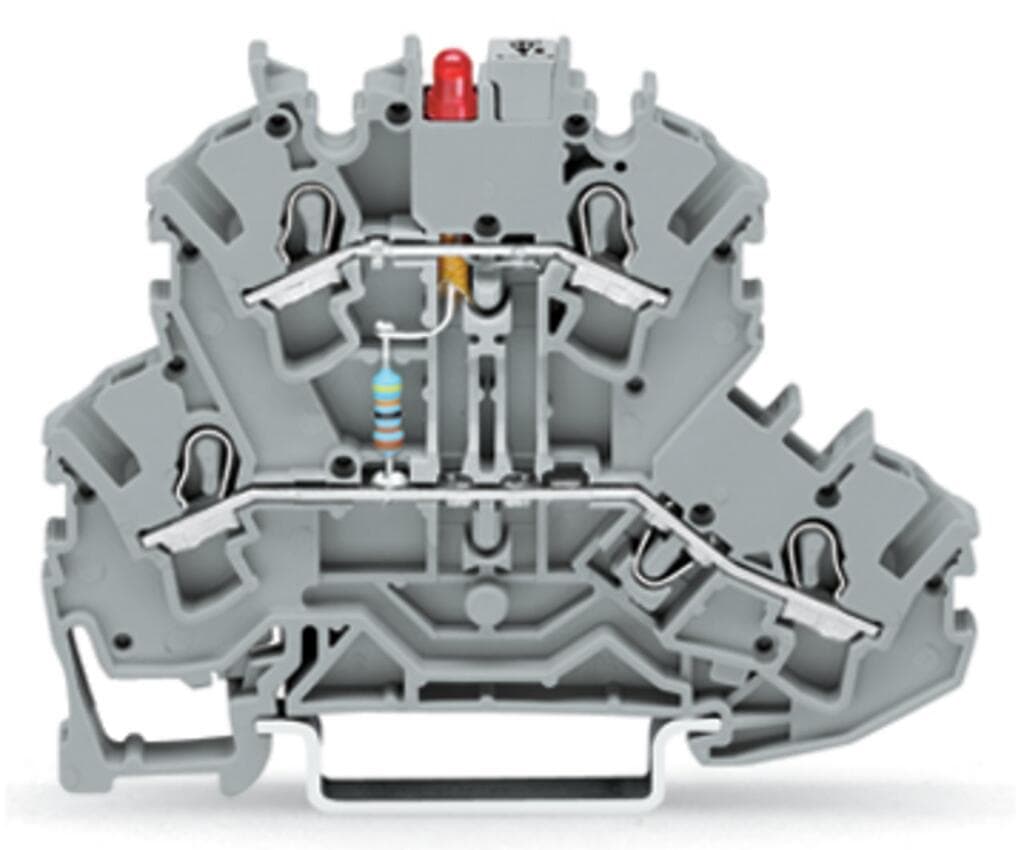

Product Model
2002-2221/1000-434
Key Features
- 1Utilizes Push-in CAGE CLAMP technology for easy and secure wire connections.
- 2Designed for mounting on DIN-35 rail (35 x 15 / 35 x 7.5) for easy installation.
- 3Measures 69.7 mm in depth and 5.2 mm in width, ideal for space-constrained applications.
- 4Features a red LED indicator to monitor power status (24 VDC).
- 5Accommodates wire sizes from 0.25 mm² to 4 mm² or #22 AWG to #12 AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 2 |
| Number of levels | 2 | Width | 5.2?mm?/ 0.205?inches |
| Height | 69.7?mm?/ 2.744?inches | Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches |
| Mounting type | DIN-35 rail | Marking level | Center/side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.209MJ |
| Weight | 11g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454375645 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated current | 0.025A | Voltage type 1 | DC |
| Nominal voltage | 24V | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Nominal cross-section | 2.5 mm2 | Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
