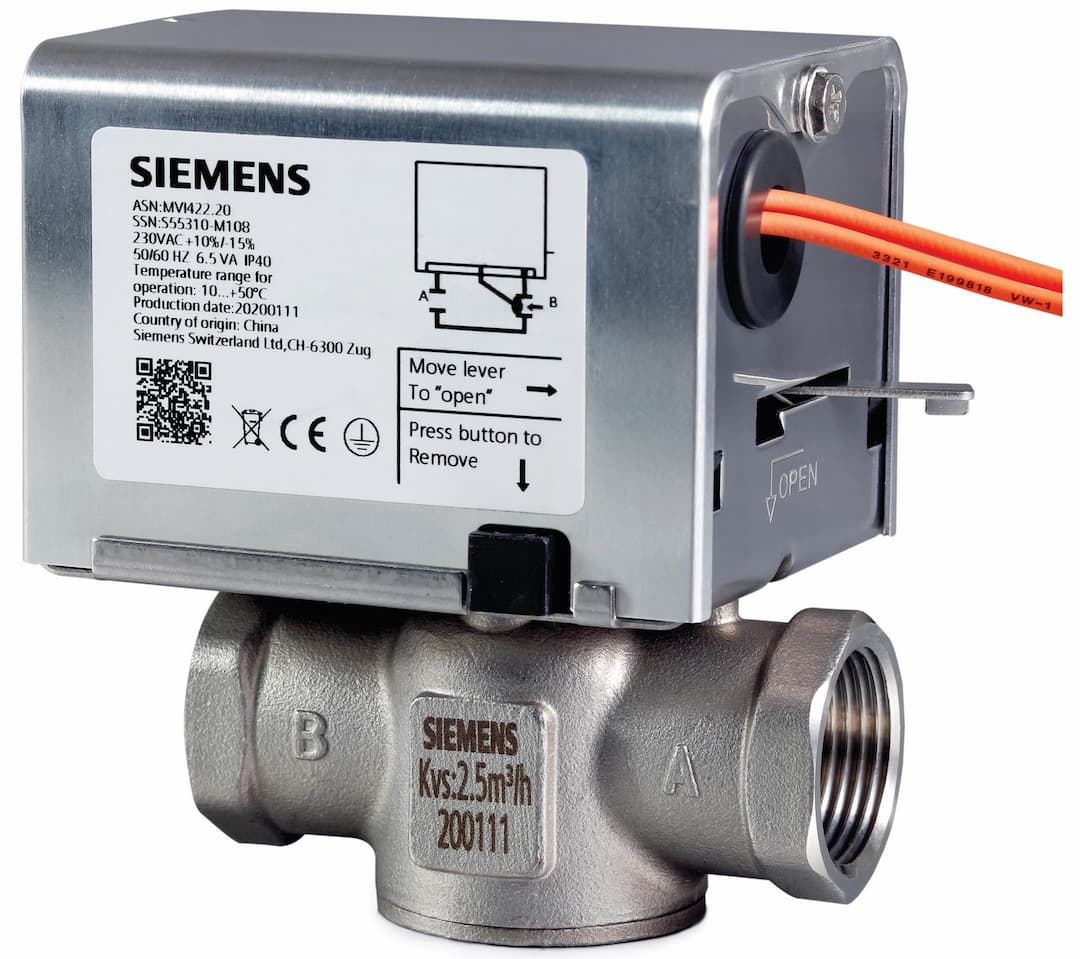

Product Model
S55310-M107
Key Features
- 1Precise On/Off Control for HVAC Systems
- 2Energy-Efficient Operation with Minimal Power Consumption
- 3Easy Integration with Existing HVAC Systems
- 4Reliable Performance in Various Environmental Conditions
- 5Compact Design for Space-Saving Installation
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | Tight shut-off (100% seal) | Bypass Leakage Rate | 5% of kvs |
| Operating Voltage | AC 230 V | Positioning Time | Open 15 s (motor-driven)
;Close 10 s (spring force) |
| Positioning Signal | 2-position | Installation Position | Vertical up to 85% tilt |
| Power Consumption | 6.5 VA | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | N |
| AL | N | Model | S55310-M107 |
Specifications may be subject to change without notice
