Product Model

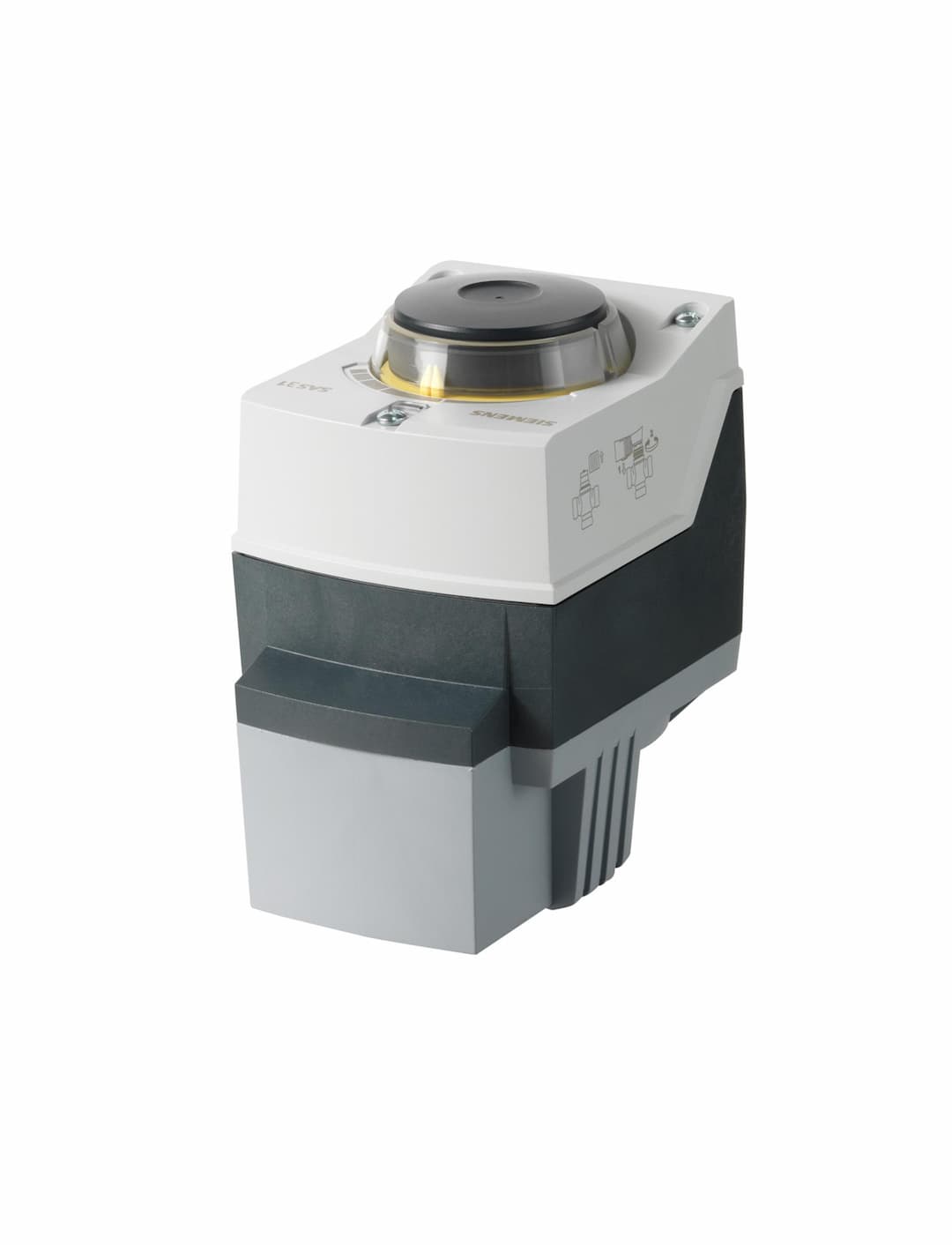

S55158-A108
Key Features
- 1Powerful 400 N force for precise control.
- 2Compact 5.5 mm stroke for easy installation.
- 3Operates on AC 230 V with 3P technology.
- 4Spring return function for smooth operation.
- 5Durable construction for long-lasting reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Range | DC 0…10 V | Operating Voltage | AC 230 V |
| Positioning Time | 3 positions | Positioning Signal | 3 positions |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 3.5 VA |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | 9N9999 | AL | N |
| Model | S55158-A108 |
Specifications may be subject to change without notice
