Product Model

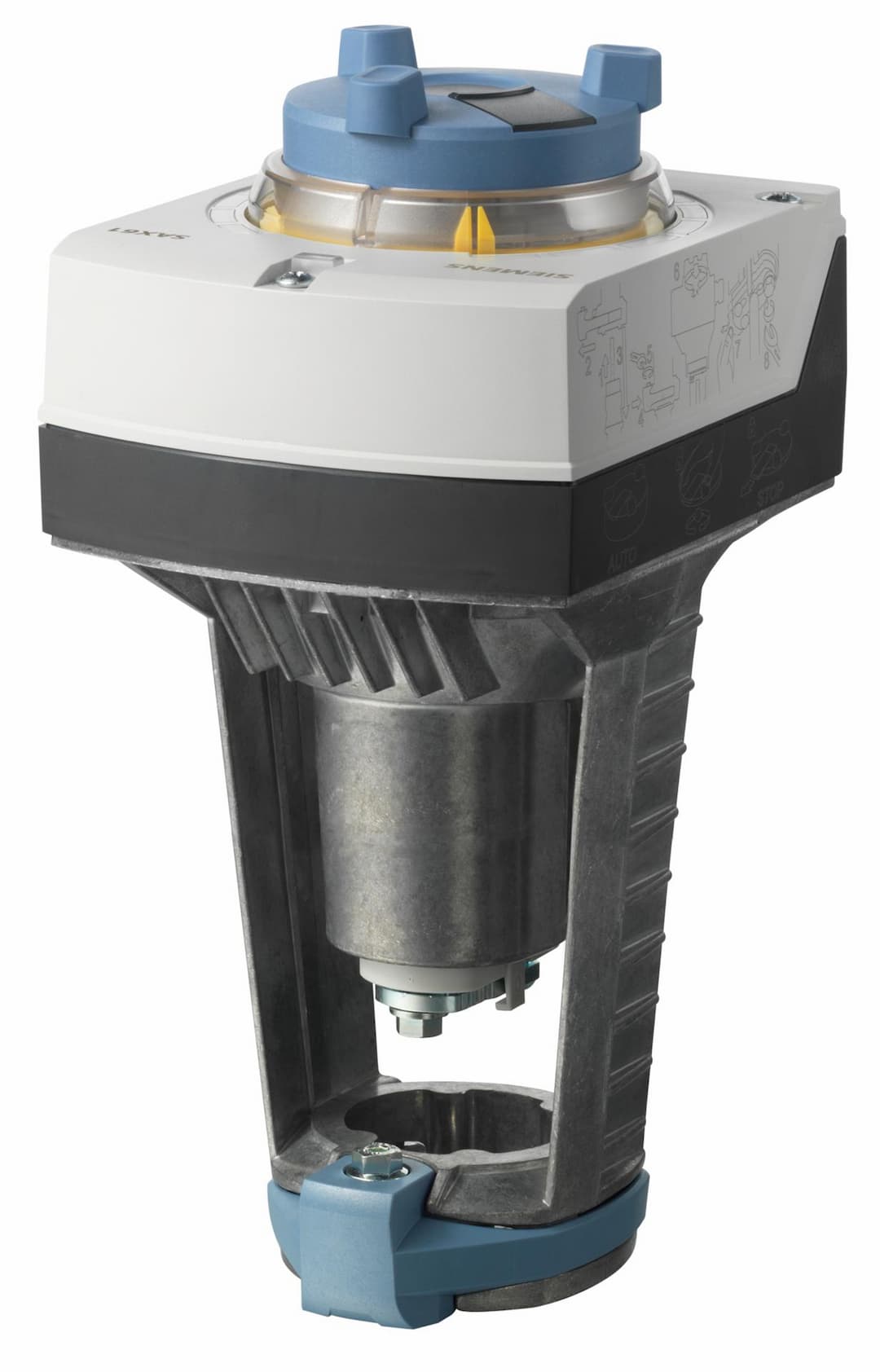

S55150-A111
Key Features
- 1High-force control with 1600 N force.
- 2Compatible with AC/DC 24 V power supply.
- 320/40 mm stroke for precise control.
- 4UL listed for plenum installations.
- 5Ideal for demanding industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Voltage | AC/DC 24 V | Positioning Time | 3-position |
| Positioning Signal | 3-position | Installation Position | Perpendicular to the horizontal plane |
| Power Consumption | 7 VA | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | 9N9999 |
| AL | N | Model | S55150-A111 |
Specifications may be subject to change without notice
