Product Model

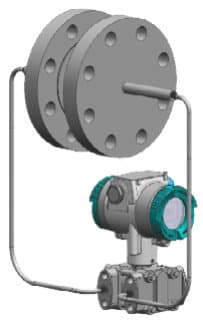

DP WITH REMOTE SEAL
Key Features
- 1No direct contact between the pressure transmitter and the medium.
- 2Individual configuration for perfect adaptation to operating conditions.
- 3Available in many versions to suit diverse applications.
- 4Quick-release versions available for fast cleaning in the food industry.
- 5Designed for difficult operating conditions, including corrosive and viscous media.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Head Protection Rating | With | Terminal Protection Rating | Gas, liquid, and vapor resistant to corrosion and non-corrosion |
| Bracket | Carbon Steel Bracket | Display | With |
| Cable and Plug Material | Plastic | Electrical Connection | 1/2-14 NPT |
| Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
| Capillary Configuration | 3 meters on each side | Filling Liquid | High-Temperature Silicone Oil |
| Wetted Materials | 316L Stainless Steel | Process Connection | Dual Flanges, EN 1092 DN80 PN40 Form B1 |
| Ambient Temperature | -10 … 85℃ | Process Temperature | -10 … 400℃ |
| Measuring Range | 0 … 60 KPa | Communication Type | HART 7 |
| Product Series | With Remote Seal Assembly | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | DP WITH REMOTE SEAL |
Specifications may be subject to change without notice
