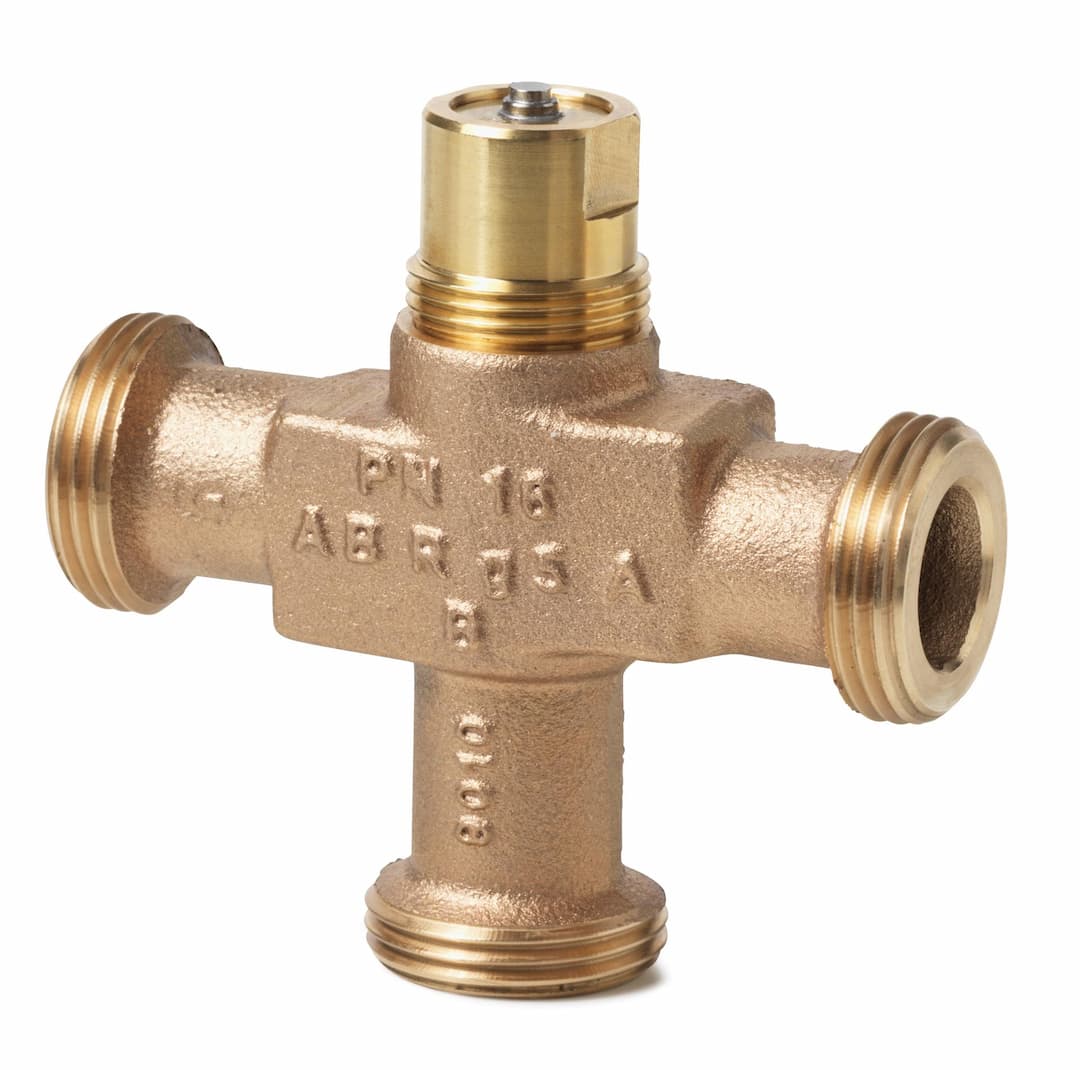

Product Model
BPZ:VXG44.20-6.3
Key Features
- 1Durable construction from bronze for corrosion resistance.
- 2Suitable for handling chilled water, low and high-temperature water, and brine in closed circuits.
- 3External thread design for easy installation and maintenance.
- 4PN16 pressure rating for reliable performance under standard conditions.
- 5DN20 nominal diameter for efficient fluid flow management.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0...0.02% <kvs/> | Bypass Leakage Rate | 0...0.02% <kvs/> |
| Working Pressure | 1600 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:VXG44.20-6.3 |
Specifications may be subject to change without notice
