Product Model
BPZ:SSC31
Key Features

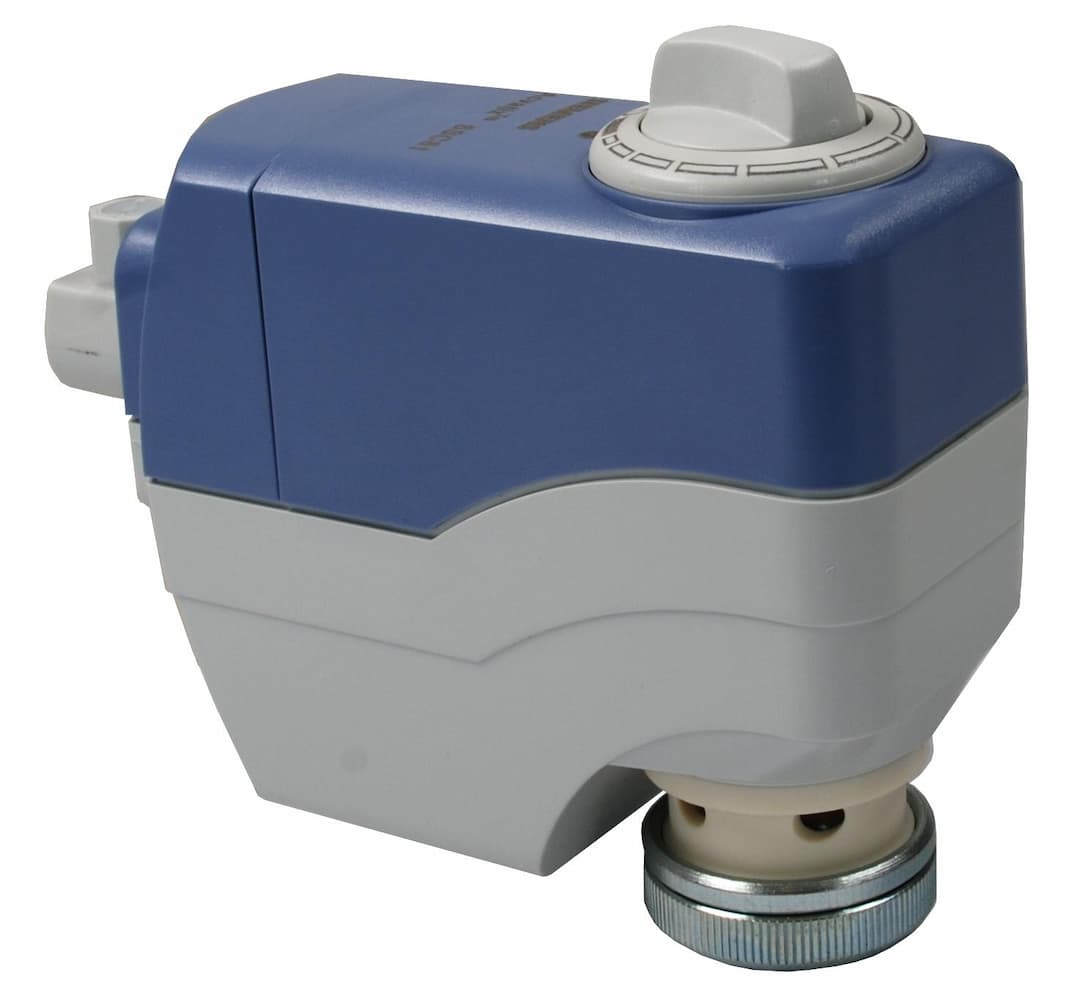

- 1Electromotoric actuator with 300N force for precise valve control.
- 2Compatible with valves featuring a 5.5mm stroke.
- 3Three-point control signal for enhanced operational flexibility.
- 4Durable plastic housing for long-lasting performance.
- 5Manual operation available for easy setup and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Operating Voltage | AC 230 V | Positioning Time | 150 s |
| Positioning Signal | Three-position floating point | Installation Position | Perpendicular to the horizontal plane |
| Power Consumption | 6 VA | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:SSC31 |
Specifications may be subject to change without notice
