Product Model

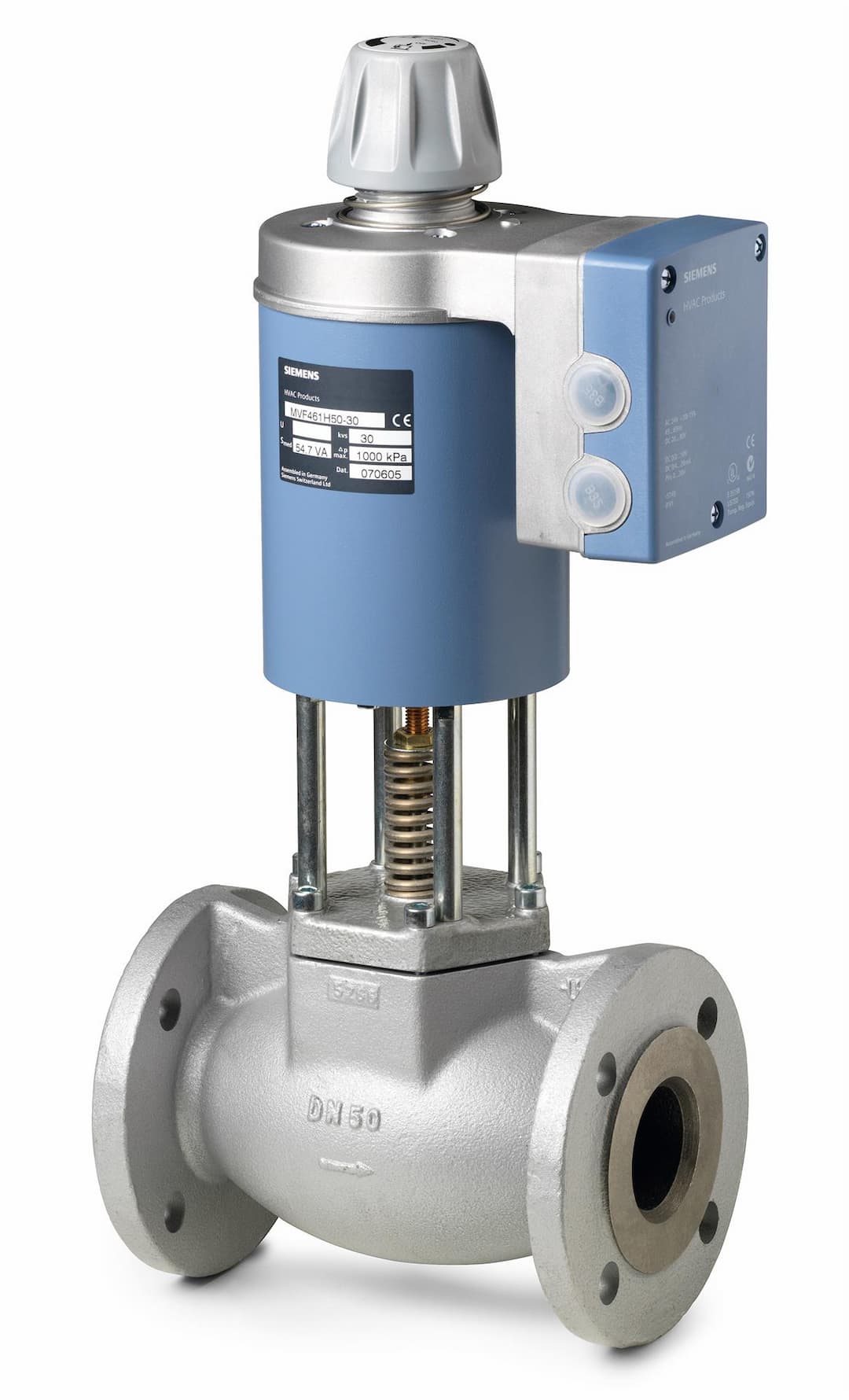

BPZ:MVF461H15-0.6
Key Features
- 1High Precision Modulation: Achieve precise control of hot water and steam with the BPZ:MVF461H15-0.6.
- 2Versatile Power Supply: Compatible with AC/DC 24V and DC 0/2...10V / 0/4...20 mA for flexible integration.
- 3Spring Return Actuator: Ensures reliable operation with a spring return magnetic actuator.
- 4PN16 Flange Compatibility: Designed for easy installation with PN16 flanges, suitable for various industrial applications.
- 5Compact Design: Compact size (DN15) makes it ideal for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Operating Range | DC 0…10 V; 0…20 mA; DC 2…10 V; 4…20 mA |
| Operating Voltage | AC 24 V; DC 24 V | Positioning Time | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs |
| Positioning Signal | DC 0...10 V; DC 0...20 mA; DC 2...10 V; DC 4...20 mA; DC 0...20 V Phs | Installation Position | Vertical to the horizontal plane |
| Power Consumption | 33 VA | Permissible Operating Pressure | Liquid, max: 1300 kPa; Steam, max: 900 kPa |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model Number | BPZ:MVF461H15-0.6 |
Specifications may be subject to change without notice
