Product Model

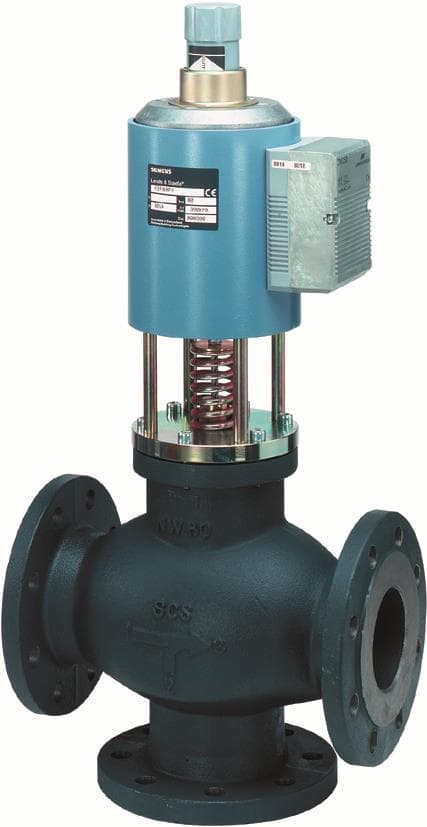

BPZ:M3P80FY
Key Features
- 1Precision Control: Modulating control with 0 to 10V signal for precise flow regulation.
- 2Robust Design: Flange PN16, DN80, kvs 80 for reliable performance in various applications.
- 3Versatile Actuation: Spring return magnetic actuator for smooth operation and easy maintenance.
- 4Wide Compatibility: Compatible with AC 24 V and DC 0/2...10 V / 4...20 mA control signals.
- 5High Flow Rate: Cv 93 for efficient flow control in chilled or low-pressure hot water systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V |
| Positioning Time | DC 0...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Power Consumption | 80 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model | BPZ:M3P80FY |
Specifications may be subject to change without notice
