Product Model

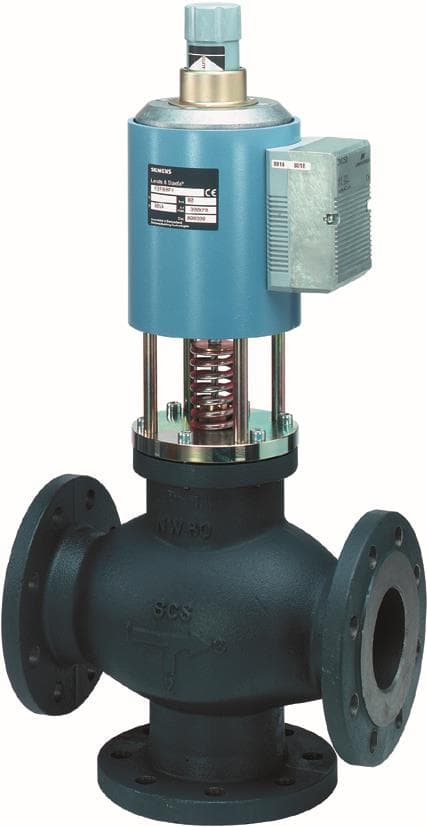

BPZ:M3P100FYP
Key Features
- 1Efficient Mixing: Ideal for applications requiring precise control over fluid flow.
- 2Flanged Design: Easy installation and maintenance with a PN16 flange.
- 3High Flow Rate: Kvs 130 ensures high flow rates in various industrial settings.
- 4Versatile Control: Compatible with AC 24 V and DC 0/2...10 V / 4...20 mA signals.
- 5Mineral Oil Media: Suitable for use with mineral oils in industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V |
| Positioning Time | DC 0...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 4...20 mA |
| Installation Position | Vertical to the horizontal plane | Permitted Operating Pressure | 1000 kPa; 10 bar |
| Lifecycle | P.M300 | Country of Origin | Switzerland |
| ECCN | N | AL | N |
| Model | BPZ:M3P100FYP |
Specifications may be subject to change without notice
