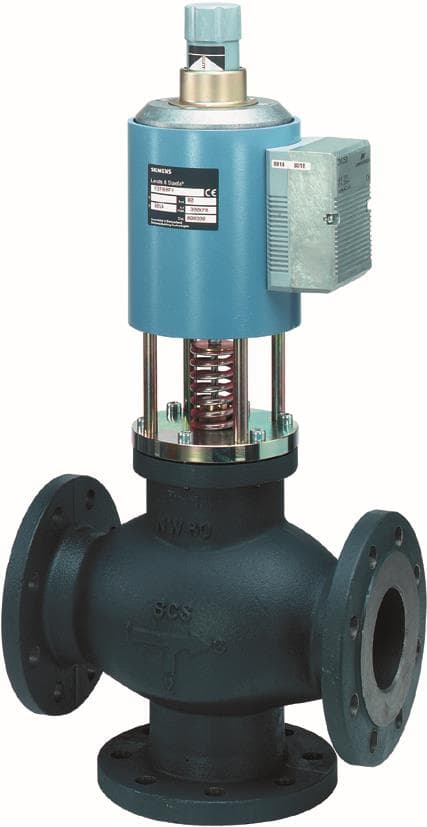

Product Model
BPZ:M3P100FY
Key Features
- 1Precision Control: 0 to 10V control for precise temperature regulation.
- 2High Flow Rate: Cv 152 for efficient fluid flow management.
- 3Spring Return Actuator: Ensures reliable operation and quick return to set position.
- 4Magnetic Actuation: Robust and durable magnetic actuator for long-lasting performance.
- 5Wide Application: Suitable for chilled water and low-pressure hot water systems in HVAC applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Leakage Rate | 0.05% of kvs | Bypass Leakage Rate | 2% of kvs |
| Operating Range | DC 0…10 V | Operating Voltage | AC 24 V |
| Positioning Time | DC 0...10 V; DC 4...20 mA | Positioning Signal | DC 0...10 V; DC 4...20 mA |
| Installation Position | Perpendicular to the horizontal plane | Power Consumption | 120 VA |
| Permissible Operating Pressure | 1000 kPa | Lifecycle | P.M300 |
| Country of Origin | Switzerland | ECCN | N |
| AL | N | Model Number | BPZ:M3P100FY |
Specifications may be subject to change without notice
