Product Model
7ML5670-0AA00-0AA0-ZY01
Key Features

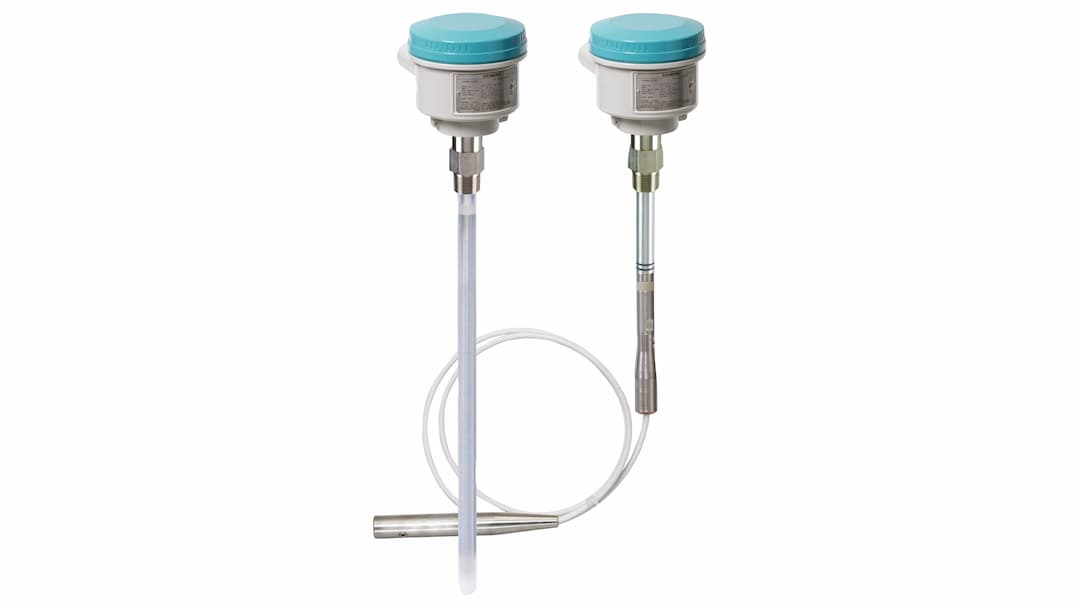

- 1Accurate Level Monitoring: Continuously monitors level or interface in liquids or solids.
- 2Robust Design: Contact rod design ensures reliable operation in various environments.
- 3Extension Flexibility: Available with extension options up to 5 meters (16.40 ft).
- 4Versatile Application: Suitable for use in both liquid and solid level measurement.
- 5High-Quality Construction: Built with high-quality materials for durability and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Backup Code | Meaningless | Electrical Interface and Protection Rating | 2*1/2" NPT, IP65 |
| Explosion Protection Type | Non-explosive protection | Probe Material | 19mm 316L hard rod with PFA coating |
| Wetted Seal Material | FKM | Thermal Isolation Measures | Standard |
| Measuring Rod Length | 300~1000mm | Process Connection and Material | 3/4" NPT/316L |
| Product Series | SITRANS LC300 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | EAR99 |
| AL | N | Model Number | 7ML5670-0AA00-0AA0-ZY01 |
Specifications may be subject to change without notice
