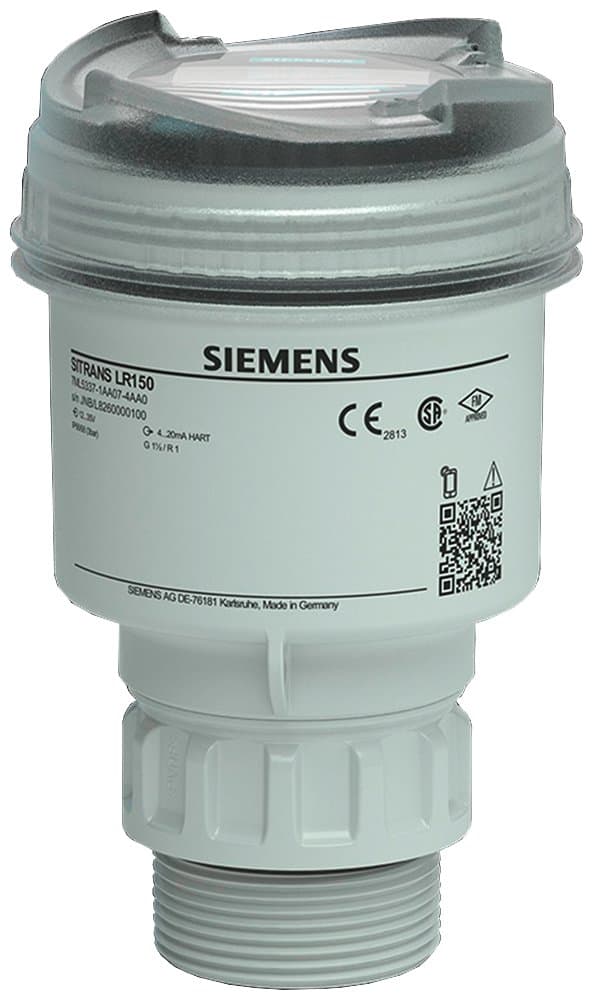

Product Model
7ML5340-0AA07-4AK3
Key Features
- 1Non-contact measurement for liquids and solids with a 15 m (49.2 ft) range.
- 2Bluetooth connectivity for easy setup and programming with SITRANS mobile IQ.
- 3Chemically resistant PVDF sensor for reliable performance in various environments.
- 4HART 7.0 communication for intelligent integration into your application.
- 5Compact design with a clear lid display for local HMI and diagnostic data.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display Operation HMI | With display and polycarbonate transparent cover | Communication Method | 4-20mA HART |
| Explosion Protection Type | Non-explosion proof | Enclosure Material | PBT Plastic |
| Cable Entry | 1/2\ | Process Connection | 1-1/2\ |
| Product Series | SITRANS LR150 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 7ML5340-0AA07-4AK3 |
Specifications may be subject to change without notice
