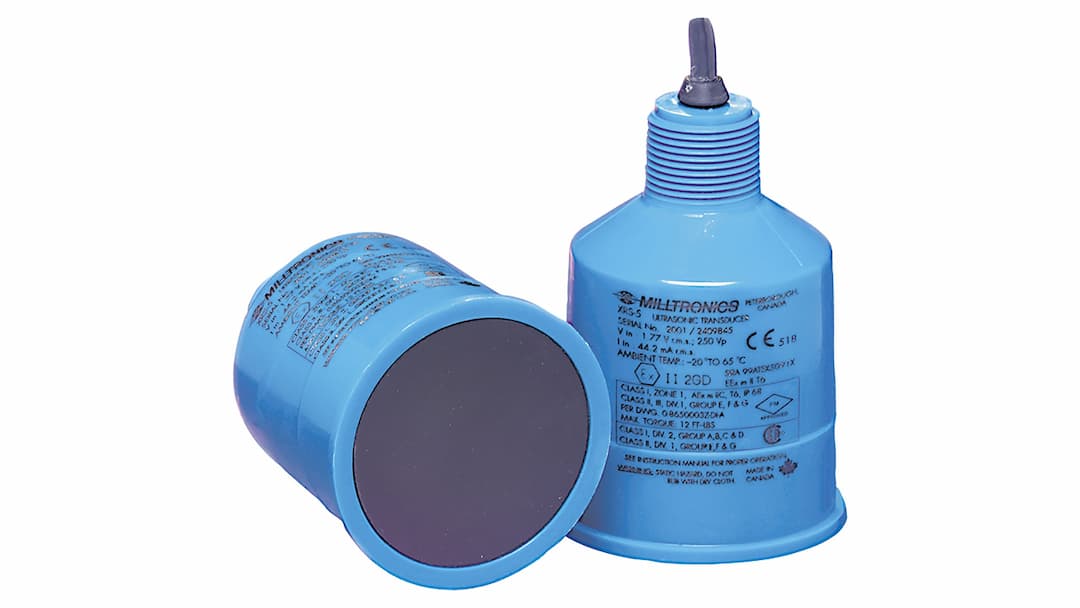

Product Model
7ML1106-1BA20-0A
Key Features
- 1Continuous, non-contact measurement for liquids and slurries.
- 28 m (26 ft) measuring range for precise level monitoring.
- 31" NPT taper mounting thread for easy installation.
- 410 m (32.81 ft) cable length for flexible placement.
- 5Compliant with CSA Class I, Div. 2, FM Class I, Zone 1, and ATEX certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Explosion Protection Type | ATEX II 2GD Ex tb IIIC T85°C Db | Cable Length | 10 meters |
| Process Connection | 1" NPT | Measuring Range | 0.3-8 meters |
| Series | Echomax XRS-5 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | EAR99I |
| AL | N | Model | 7ML1106-1BA20-0A |
Specifications may be subject to change without notice
