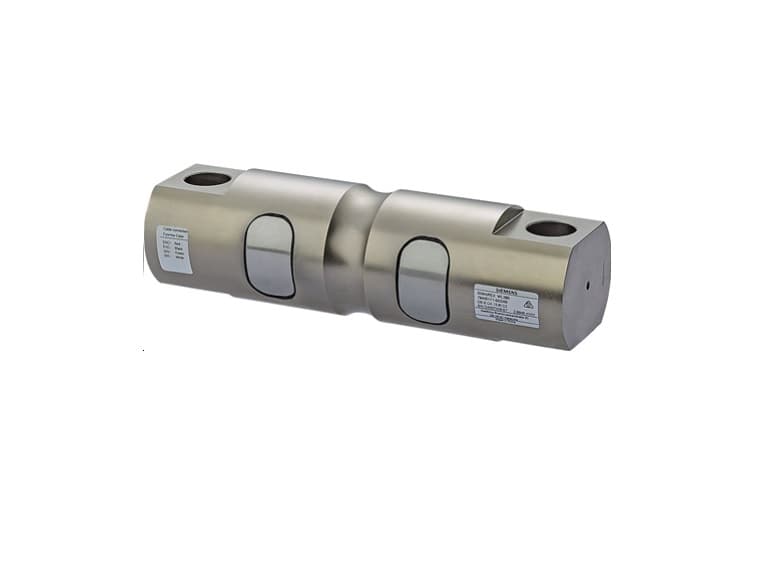

Product Model
7MH5122-5JD00
Key Features
- 1High precision with C3 accuracy class.
- 2Rated load of 27 tons.
- 3Meets OIML R60 standards.
- 4Nickel-plated alloy steel construction.
- 59-meter cable with 4 conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 9 meters | Height | 76.2mm |
| Depth | 76.2mm | Width | 260.4mm |
| Protection Rating | IP67 | Accuracy Class | C3 |
| Explosion Protection | Explosion-proof (optional) | Suitable Applications | Platform Scale
Hopper Scale
Truck Scale |
| Material | Alloy Steel | Capacity Range | 2.3t to 113t |
| Model Series | WL290 DB-S CA | Form | Double Shear Beam |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 7MH5122-5JD00 |
Specifications may be subject to change without notice
