Product Model

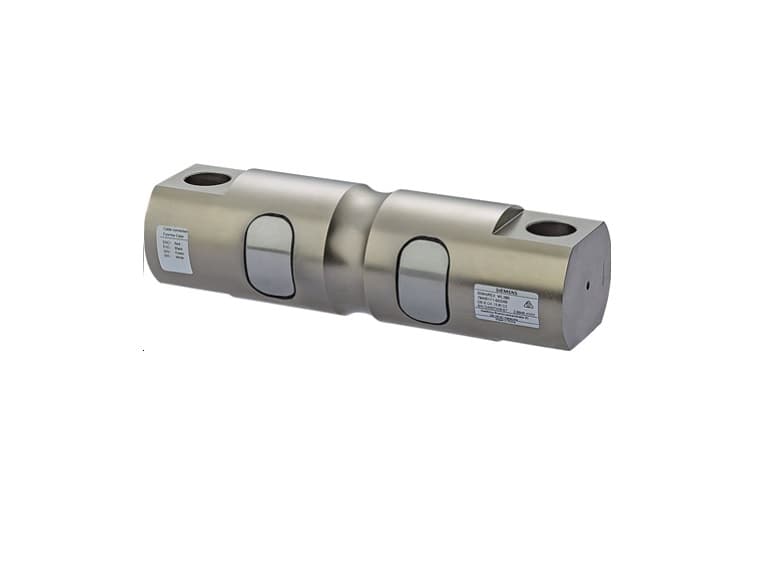

7MH5122-5DD00
Key Features
- 1High accuracy class C3 for precise measurements.
- 2Compliant with OIML R60 standards for reliability.
- 3Durable alloy steel construction with nickel-plating.
- 49-meter cable with 4 conductors for extended reach.
- 5Rated load of 13.6 tons for heavy-duty applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 9 meters | Height | 76.2mm |
| Depth | 76.2mm | Width | 260.4mm |
| Protection Rating | IP67 | Accuracy Class | C3 |
| Explosion Protection | Explosion-proof (optional) | Suitable Applications | Platform Scale
Hopper Scale
Railway Scale |
| Material | Alloy Steel | Capacity Range | 2.3t to 113t |
| Model Series | WL290 DB-S CA | Form | Double Shear Beam |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 7MH5122-5DD00 |
Specifications may be subject to change without notice
