Product Model

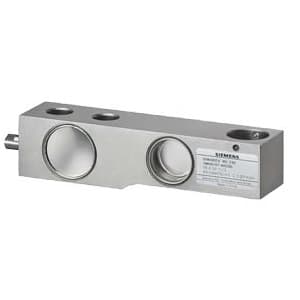

7MH5107-4KD00
Key Features
- 1High accuracy load cell with a rated load of 3t.
- 2Stainless steel construction for enhanced durability.
- 3IP68 protection for reliable performance in harsh environments.
- 4Free delivery available for registered users.
- 5Ideal for precision measurements in industrial processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 6 meters | Height | 44mm |
| Depth | 38mm | Width | 172mm |
| Protection Level | IP68 | Accuracy Class | C3 |
| Explosion Protection | With Explosion Protection | Suitable Applications | Platform Scale
Hopper Scale
Container Weighing Scale |
| Material | Stainless Steel | Capacity Range | 1t~5t |
| Model Series | WL230 SB-S SA | Form Factor | Shear Beam |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 7MH5107-4KD00 |
Specifications may be subject to change without notice
