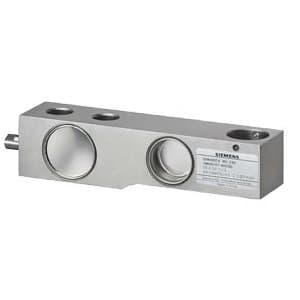

Product Model
7MH5107-3PD00
Key Features
- 1High Accuracy Class C3: Ensures precise measurements in various industrial applications.
- 2Stainless Steel Construction: Durable and resistant to corrosion, ideal for harsh environments.
- 33m Cable Length with 4 Conductors: Convenient and reliable connectivity for easy integration.
- 4IP68 Degree of Protection: Provides excellent protection against dust and water, ensuring long-term reliability.
- 5Compliant with RoHS Directive: Meets stringent environmental regulations, ensuring eco-friendliness.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable Length | 3 meters | Height | 32mm |
| Depth | 32mm | Width | 130mm |
| Protection Rating | IP68 | Accuracy Class | C3 |
| Explosion Protection | With Explosion Protection | Suitable Applications | Platform Scale
Hopper Scale
Container Weighing Scale |
| Material | Stainless Steel | Capacity Range | 1t~5t |
| Model Series | WL230 SB-S SA | Form Factor | Shear Beam |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 7MH5107-3PD00 |
Specifications may be subject to change without notice
