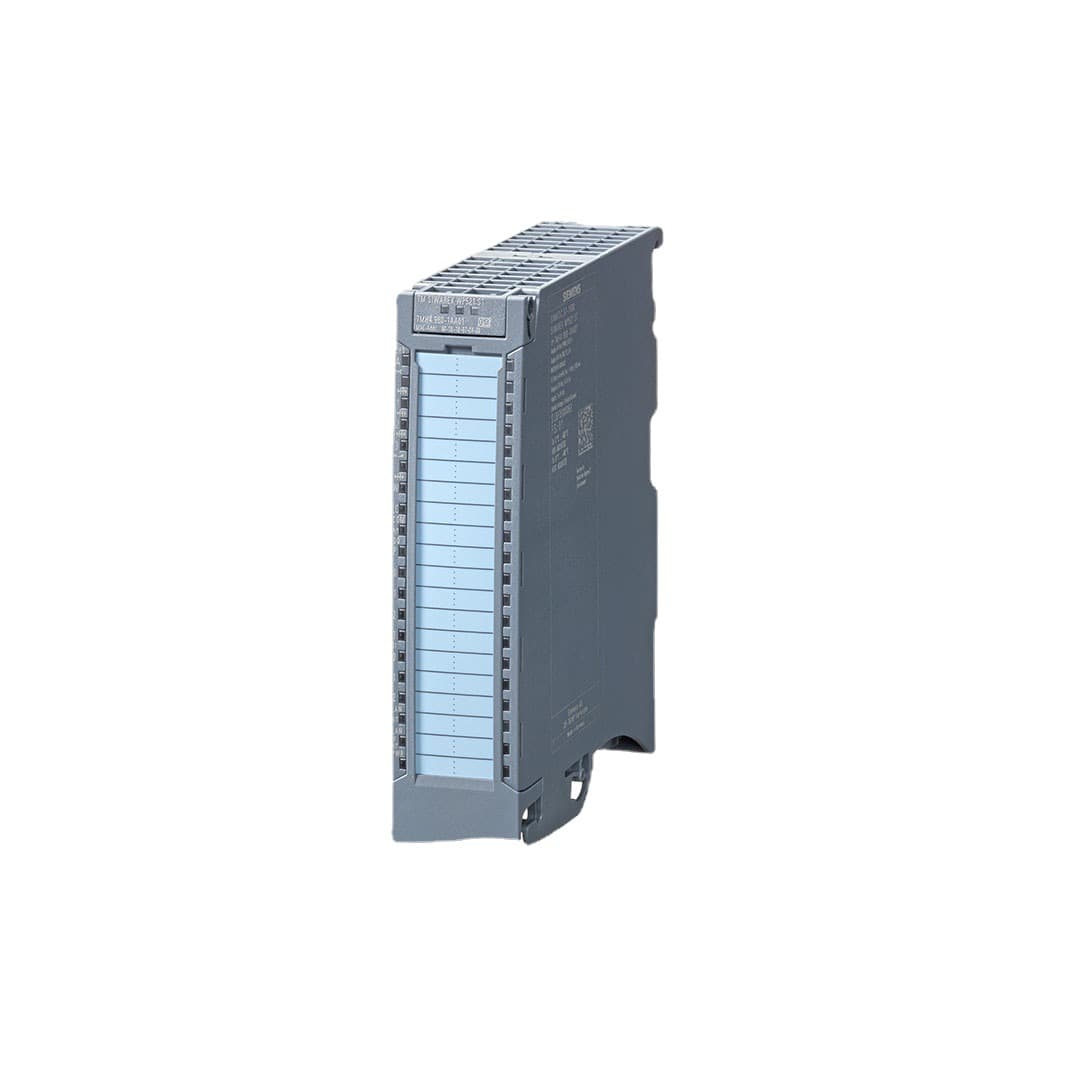

Product Model
7MH4980-1AA01
Key Features
- 1Single-Channel Weighing Module: Designed for one platform or hopper scales with analog load cells/strain gauges.
- 2Robust Connectivity: Equipped with RS485 and Ethernet interfaces for reliable communication.
- 3Onboard I/O: Includes 3 x DI (24V DC) and 4 x DQ (24V DC) for enhanced functionality.
- 4Industrial-Grade: Built for durability in harsh industrial environments.
- 5Compatibility: Compatible with SIMATIC S7-1500 systems, ensuring seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Height | 147mm | Depth | 129mm |
| Width | 35mm | Resolution | ±4 million |
| Accuracy | 5.0000000000000001E-4 | Compatible PLCs | S7-1500, ET 200MP |
| Applications | • Hopper scales/tank scales/platform scales
• Weighing blending
• Weighing level measurement
• Tension and force measurement | Product Type | SIWAREX weighing electronic module |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | N | AL | N |
| Model Number | 7MH4980-1AA01 |
Specifications may be subject to change without notice
