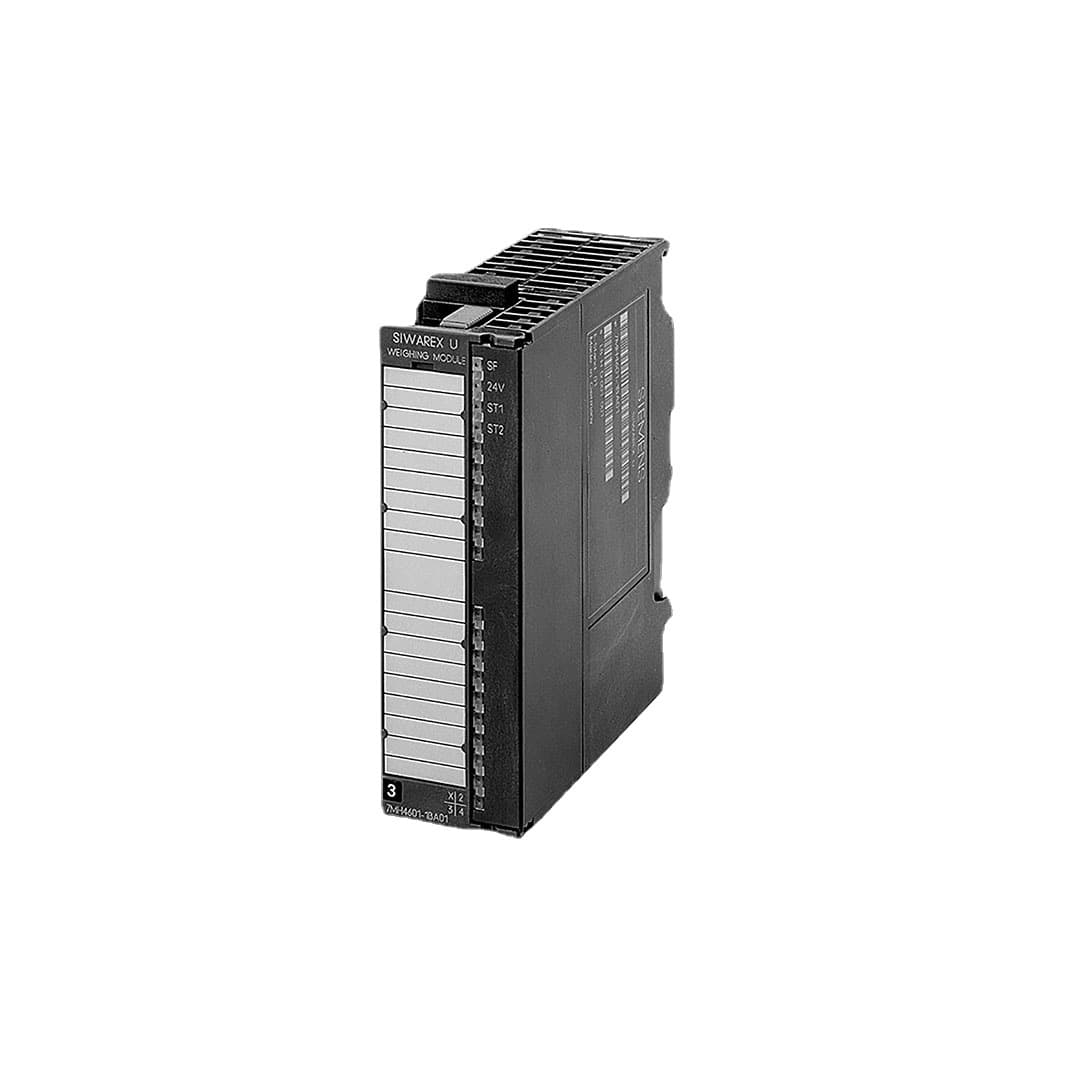

Product Model
7MH4950-2AA01
Key Features
- 1Compact Design: The module is designed to be compact, making it ideal for space-constrained applications.
- 2Reliable Performance: Delivers precise and reliable performance in weighing applications.
- 3Versatile Applications: Suitable for belt tensioning measurement, fill-level monitoring, and industrial elevators.
- 4Analog Inputs/Outputs: Equipped with 2 analog inputs and 2 analog outputs for seamless integration.
- 5DIN Rail Mounting: Easy to mount on DIN rail for convenient installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Height | 130mm | Depth | 125mm |
| Width | 40mm | Resolution | 65535 |
| Accuracy | 5.0000000000000001E-4 | Compatible PLCs | S7-300, ET 200M |
| Applications | • Hopper scales/tank scales/platform scales
• Weighing blending
• Weighing level measurement
• Tension and force measurement | Product Type | SIWAREX weighing electronic module |
| Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
| ECCN | EAR99I | AL | N |
| Model | 7MH4950-2AA01 |
Specifications may be subject to change without notice
