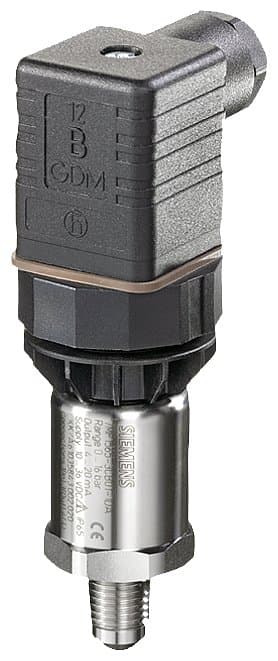

Product Model
7MF1567-3CA00-1AA1
Key Features
- 1High Precision Measurement: Offers accurate pressure measurement with a non-linearity of 0.25%.
- 2Absolute Pressure Range: Measures absolute pressure from 0 to 10 bar.
- 34 to 20 mA Output: Provides a reliable 4 to 20 mA 2-wire output for easy integration.
- 4Fully Welded Design: Ensures durability and resistance to high-pressure applications.
- 5Versatile Applications: Suitable for high-pressure and refrigerant applications in various industries.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Display Module | None | Power Supply | 7 … 33 V DC |
| Environmental Temperature Range | -25 … 85℃ | Enclosure Material | Stainless Steel 316L |
| Medium Type | Pressure Measurement for Gases, Liquids, and Steam | Protection Rating | IP65 |
| Process Temperature | -40 … 120℃ | Explosion Protection Type | Non-Explosion Proof |
| Output Signal | 4 ... 20 mA | Electrical Interface | Right Angle Cable Entry M16, in accordance with DIN EN 175301-803-A |
| Process Connection | External Thread G1/2", in accordance with EN 837-1 | Diaphragm Material | Stainless Steel |
| Accuracy | 2.5000000000000001E-3 | Measuring Range | 0 ... 10 bar |
| Product Series | SITRANS P220 | Lifecycle | Delivery Release (PM300) |
| Country of Origin | Germany | ECCN | N |
| AL | N | Model Number | 7MF1567-3CA00-1AA1 |
Specifications may be subject to change without notice
