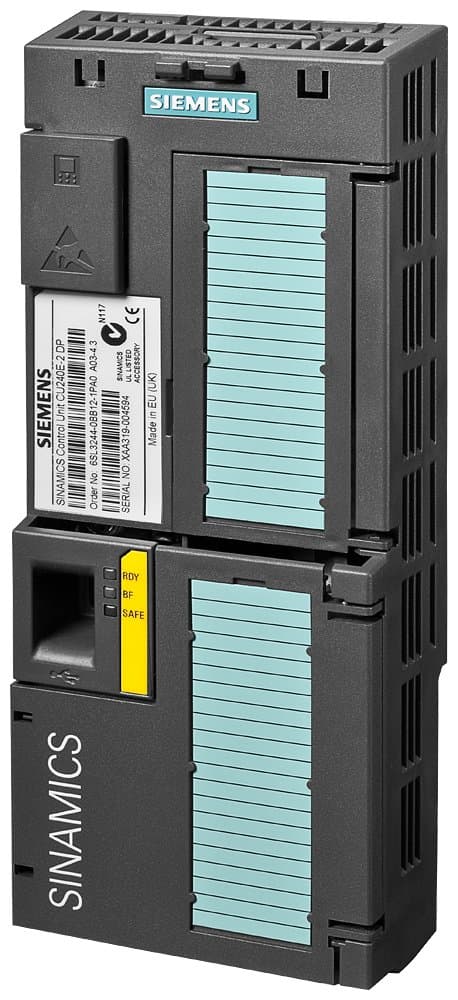

Product Model
6SL3244-0BB12-1PA1
Key Features
- 1Integrated STO Safety Function: Ensures safe torque off for enhanced safety in machinery applications.
- 2PROFIBUS DP Interface: Facilitates seamless communication with local or central control systems.
- 3Robust Digital/Analog I/O: Supports 6 digital inputs, 3 digital outputs, 2 analog inputs, and 2 analog outputs.
- 4USB and SD/MMC Interface: Enhances connectivity options for data transfer and storage.
- 5IP20 Protection Class: Provides reliable operation in harsh industrial environments with a protection class of IP20.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Remarks | AL:N/ECCN:N | Control Unit | 6SL3244-0BB12【CU240E-2】 |
| Communication Method | P【DP】 | Application Scope | A1 |
| Product Type | Module Variable Frequency Drive | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 6SL3244-0BB12-1PA1 |
Specifications may be subject to change without notice
