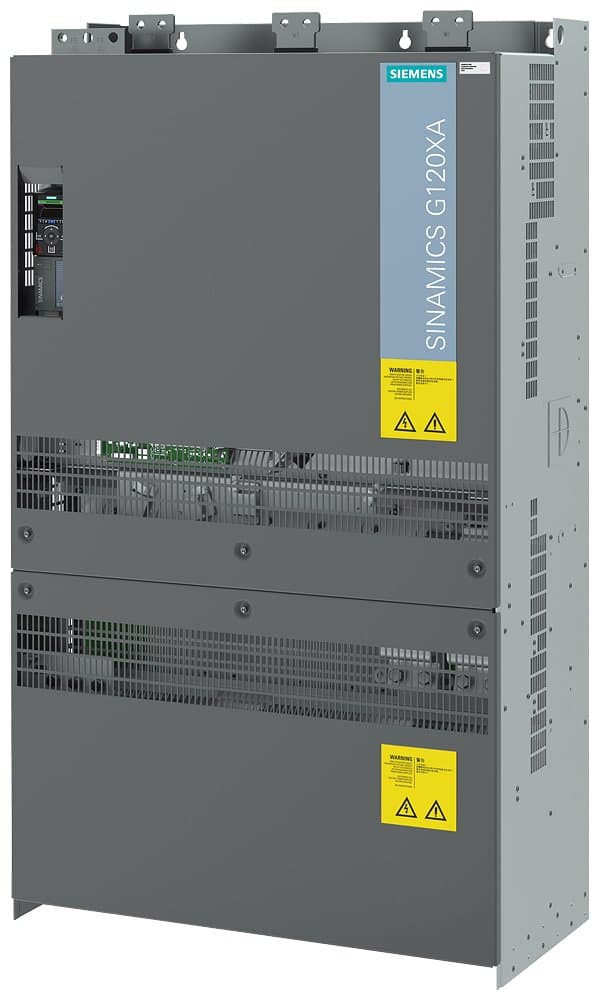

Product Model
6SL3225-3YD64-0CB0
Key Features
- 1High Power Capacity: 500KW rated power for demanding industrial applications.
- 2Versatile Applications: Suitable for fan pump applications in water treatment, subway systems, HVAC, paper making, and environmental protection.
- 3Advanced Filter Technology: C3 stage filter for enhanced performance and reliability.
- 4Efficient Control Method: Vector control for precise and efficient operation.
- 5Comprehensive Communication: Supports Modbus, USS, and BACnet protocols for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 393mm | Height | 1,438mm |
| Width | 801mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP00 |
| Dimensions | FSJ | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 500kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | 3A999A | AL | N |
| Model Number | 6SL3225-3YD64-0CB0 |
Specifications may be subject to change without notice
