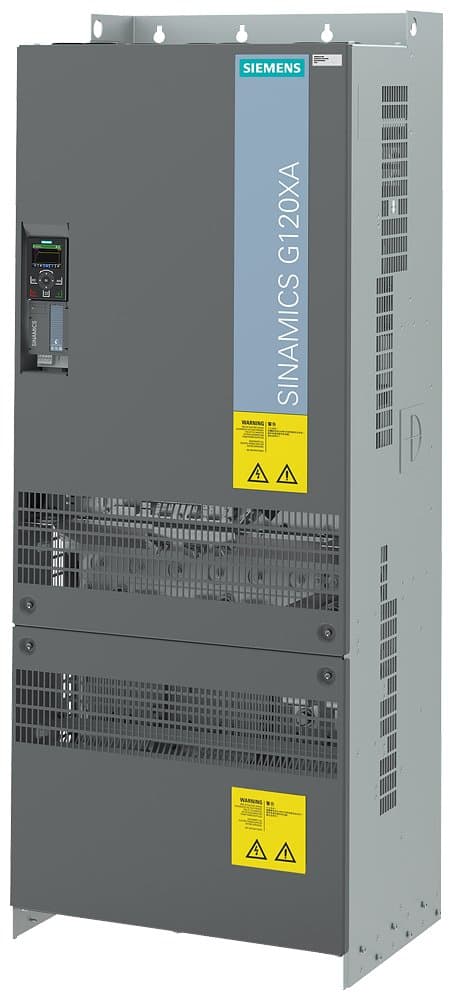

Product Model
6SL3220-3YD60-0CB0
Key Features
- 1Rated power of 400 kW with overload capability up to 110% for 60 seconds.
- 2Efficiency of 0.98, ensuring optimal performance and reduced energy consumption.
- 3Supports V/f linear, square-law, and parameterizable control methods, as well as sensorless vector control.
- 4IP20 protection and a robust frame size FSH, suitable for various industrial environments.
- 5Supports USS, Modbus RTU, BACnet MS/TP, and digital inputs/outputs for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 393mm | Height | 1,487mm |
| Width | 548mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSH | Filter | Integrated A-C3 Class Filter |
| Motor Power | 400kW | Rated Voltage | 380-440V |
| Product Type | Inverter | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | 3A999A |
| AL | N | Model Number | 6SL3220-3YD60-0CB0 |
Specifications may be subject to change without notice
