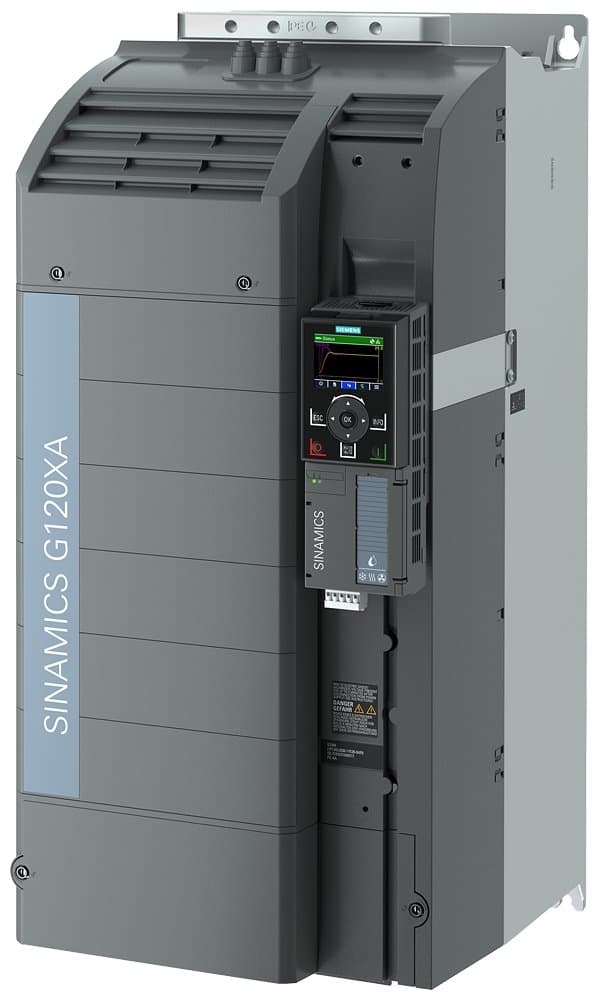

Product Model
6SL3220-3YD42-0CB0
Key Features
- 1Rated power of 75kW with 3AC 380V -20% to 440V +10%.
- 2Integrated class A C3 filter for enhanced performance and reliability.
- 3Includes integrated IOP-2 for precise control and monitoring.
- 4Supports MODBUS RTU and BACnet MS/TP for seamless integration with fieldbus systems.
- 5Compliant with REACH Regulation, ensuring safe use and disposal.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 357mm | Height | 709mm |
| Width | 305mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSF | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 75kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-3YD42-0CB0 |
Specifications may be subject to change without notice
