Product Model

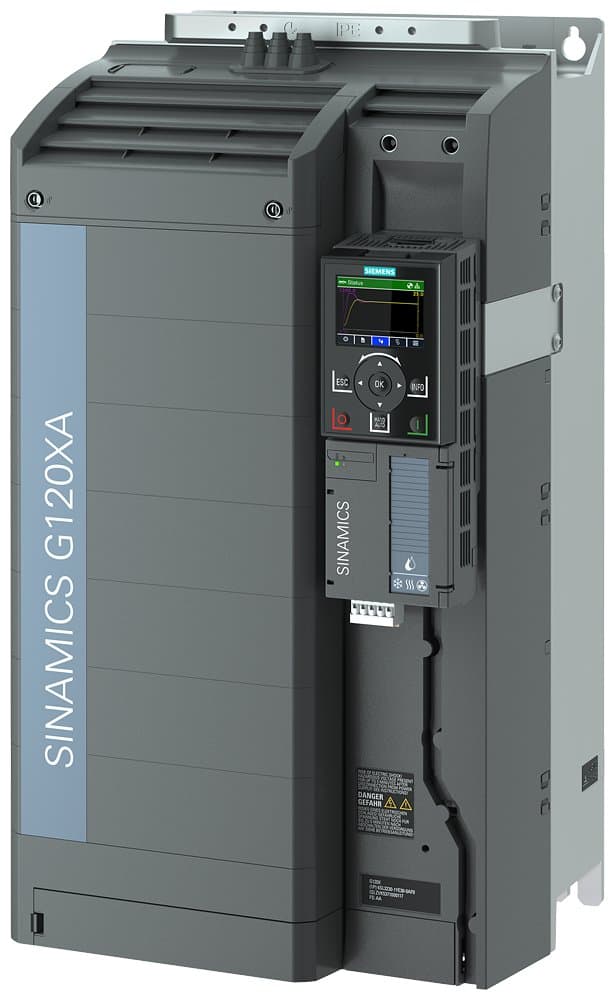

6SL3220-3YD40-0UB0
Key Features
- 155 kW rated power for demanding industrial needs.
- 2Operates with line voltage 380-440 V, ensuring compatibility with various systems.
- 3Achieves an efficiency of 97%, minimizing energy loss and maximizing productivity.
- 4Supports vector control, V/f control, and sensorless control for precise motor management.
- 5Includes the Intelligent Operator Panel (IOP-2) for easy monitoring and control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 551mm |
| Width | 275mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSE | Input Phases | 3 |
| Filter | No Filter | Motor Power | 55kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-3YD40-0UB0 |
Specifications may be subject to change without notice
