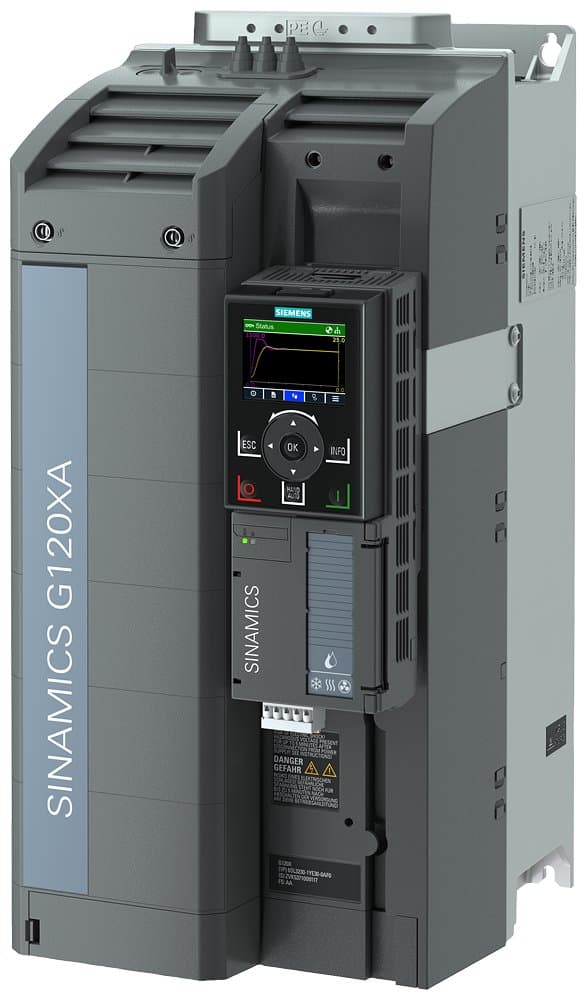

Product Model
6SL3220-3YD34-0CB0
Key Features
- 130kW rated power for demanding industrial applications.
- 2Operates at 380V-440V, ensuring flexibility in various environments.
- 3C3 stage filter for enhanced performance and reliability.
- 4Vector control for precise and efficient operation.
- 5Supports Modbus, USS, and BACnet for seamless integration with existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 237mm | Height | 472mm |
| Width | 200mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSD | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 30kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-3YD34-0CB0 |
Specifications may be subject to change without notice
