Product Model

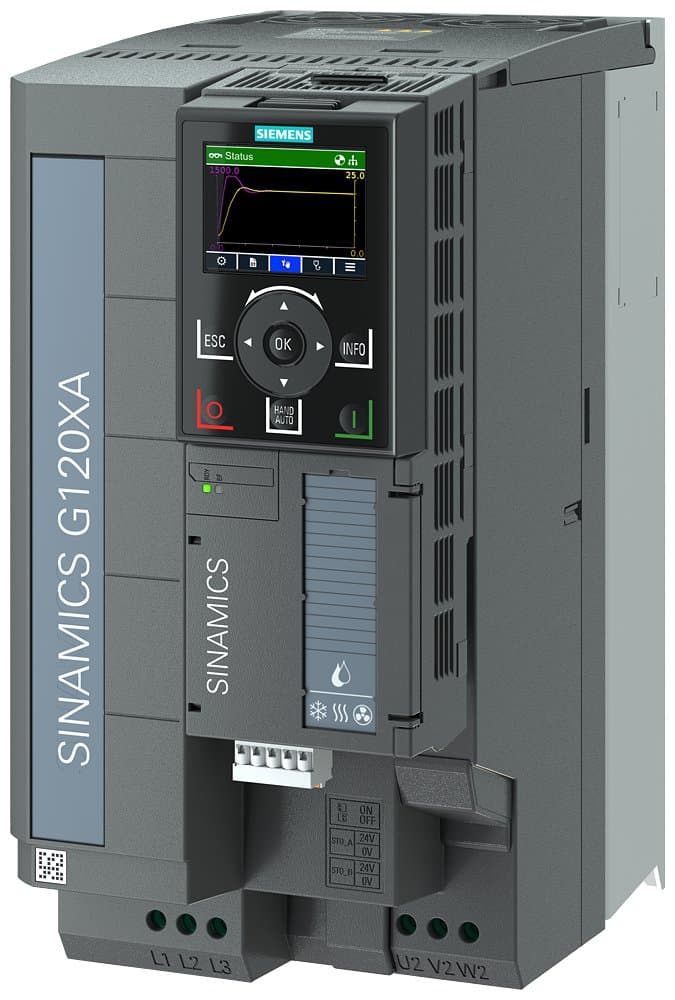

6SL3220-3YD26-0CB0
Key Features
- 1Integrated IOP-2 Panel: Enhances operator interface with advanced functionality.
- 2Class A C3 Filter: Ensures high-quality power supply with integrated filtering.
- 3Robust RFI Suppression: Minimizes electromagnetic interference for reliable operation.
- 4High-Power Capacity: Supports up to 37 kW at 3AC 380V, making it suitable for demanding applications.
- 5Siemens Quality Assurance: Backed by Siemens' renowned quality and reliability standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 209mm | Height | 295mm |
| Width | 140mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Dimensions | FSC | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 11kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-3YD26-0CB0 |
Specifications may be subject to change without notice
