Product Model

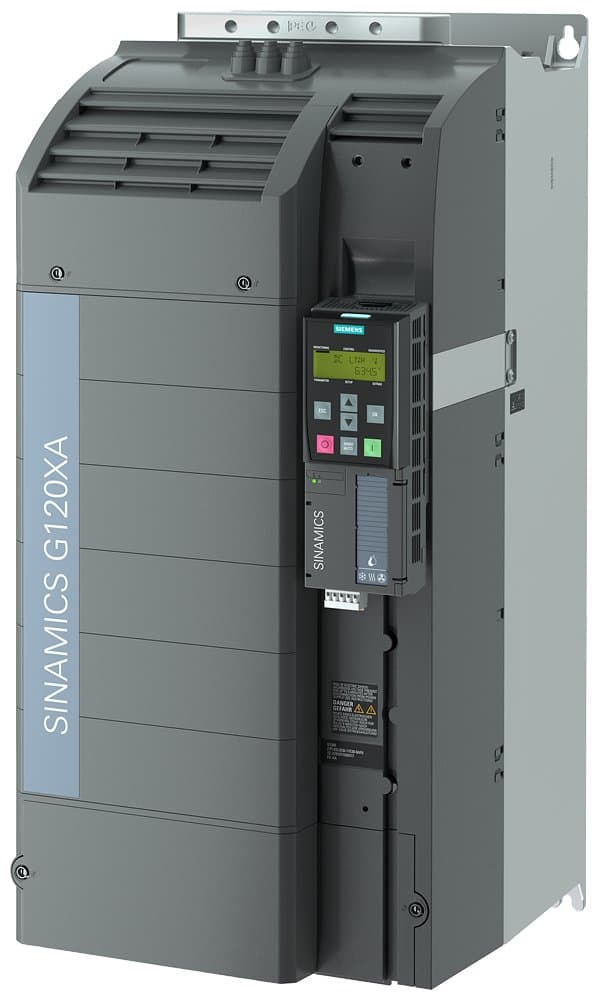

6SL3220-1YD44-0CB0
Key Features
- 1High-rated power of 90kW for efficient motor control.
- 2Integrated fieldbus options including MODBUS RTU, BACnet MS/TP, and USS.
- 3Robust protection with IP20 rating for reliable operation.
- 4Compact frame size of FSF 709x305x360 (HxWxD) for space optimization.
- 5Suitable for various industrial applications with 3AC 380V voltage range.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Depth | 357mm | Height | 709mm |
| Width | 305mm | Analog Outputs | 2 |
| Analog Inputs | 2 | Digital Outputs | 4 |
| Digital Inputs | 6 | Protection Rating | IP20 |
| Size | FSF | Input Phases | 3 |
| Filter | Integrated A-C3 Class Filter | Motor Power | 90kW |
| Rated Voltage | 380-440V | Product Type | Inverter |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 6SL3220-1YD44-0CB0 |
Specifications may be subject to change without notice
